Subsequent Work

Information

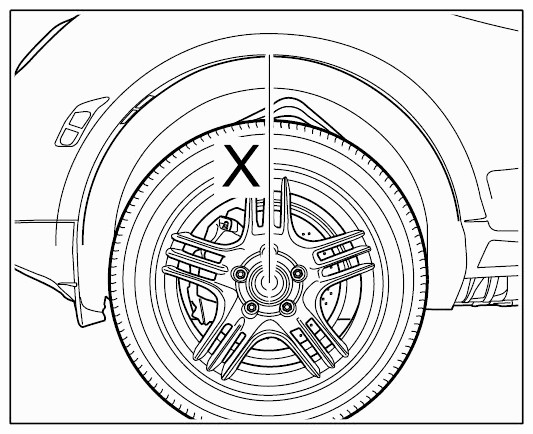

• The entire threaded parts of the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels, or the wheel suspension is raised with a universal vehicle lift. Dimension -X- , from lower edge of wing to centre of wheel → Control value: 502 mm+/-10 mm corresponds to vehicle position.
  Fig 1: Identifying Universal Vehicle Lift Dimension

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Carry out a visual inspection of all parts.
• Replace self-locking nuts.
• Replace all expansion screws (screws fitted using torque angle tightening procedure).
• Observe correct tightening torques and torque angle → Tightening torques for front axle.
• Make sure the bevel pinions from the ball joints are clean. Clean with a lint-free cloth as necessary. Do not use cleaning agent.

1. Install lower trailing arm → 401719 REMOVING AND INSTALLING LOWER TRAILING ARM .
2. Fit wheel → WM 440519 REMOVING AND INSTALLING WHEEL .
3. Carry out suspension alignment → Tools .
