Tools And Materials

Information

From model year 2008 onwards, new hydraulic bearings with a larger diameter were introduced in parallel for the bearing -A-  . The supplement set T10230/14-16 must be used for these bearings.

The procedure for pressing the bearings in and out is the same for both bearings.

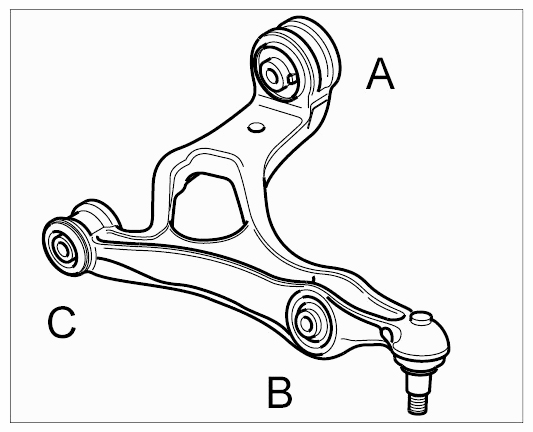

Lower trailing arm with rubber-metal bearings A, B, C.

Fig 1: Identifying Lower Trailing Arm And Rubber-Metal Bearings
G09418876Courtesy of PORSCHE CARS NORTH AMERICA, INC.

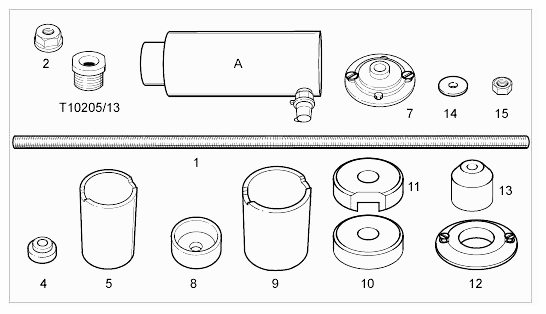

Tool set T10230 .

Fig 2: Identifying Tool Set T10230
G09418877Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Item Designation Source Explanation
-A-  Tubular piston cylinder VAS 6178 The tubular piston cylinder is used with the pneumatic hydraulic pump VAS 6179.
Tool set T10230 Assembly fixture T10230  Tool set for pressing hydraulic bearings/rubber-metal bearings in and out, comprising No. 1-15.
-1-  Threaded rod - assembly fixture T10230 Used in the tubular piston cylinder VAS 6178 -A-  .
-2-  Nut with collar - assembly fixture T10230 Screwed onto the threaded rod -1-  .
-4-  Pressure piece 40 - assembly fixture T10230 For pressing out the bearing -C-  .
-5-  Pipe 56 - assembly fixture T10230 For pressing out the bearing -B, C-  .
-7-  Adjusting washer - assembly fixture T10230 Screwed into the tubular piston cylinder vas 6178 -A-  with two countersunk screws. For pressing out bearings -A, B, C-  . For pressing in bearing -C-  .
-8-  Support - assembly fixture T10230 For pressing in bearing -C-  .
-9-  Pipe 72 - assembly fixture T10230 For pressing out the bearing -A-  .
-10-  Pressure piece 60 - assembly fixture T10230 For pressing in bearing -B-  .
-11-  Support - assembly fixture T10230 For pressing in bearing -A-  .
-12-  Ring - assembly fixture T10230 Screwed into the tubular piston cylinder VAS 6178 -A-  with two countersunk screws. For pressing in bearings -A, B-  .
-13-  Pressure piece 45 - assembly fixture T10230 For pressing out the bearing -B-  .
-T10205/13-  Pressure head attachments T10205    Pressure head from assembly fixture T10205 (!); screwed into the tubular piston cylinder VAS 6178 -A-  .
-14-  Washer - assembly fixture T10230   Placed on the threaded rod -1-  .
-15-  Nut - assembly fixture T10230   Commercially available M14 nut. Screwed onto the threaded rod -1-  .
T10230/14-16  Supplement set for T10230 For pressing out and in bearing -A-  with larger diameter.
