Trailing Arm Tools

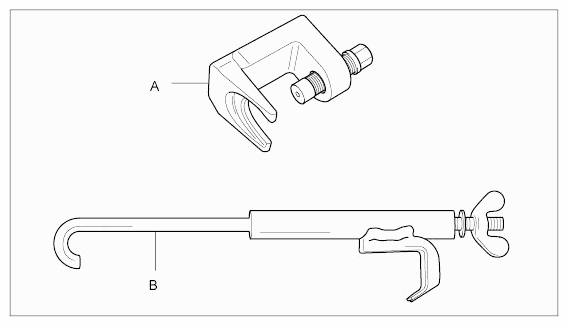

Fig 1: Identifying Trailing Arm Tools
G09418862Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A- - press-out tool T10187  - to press out the ball joint on the wheel carrier.
  2. -B- - spring compressor VW 552  - for slightly tensioning the upper trailing arm.
