Installing Lower Trailing Arm

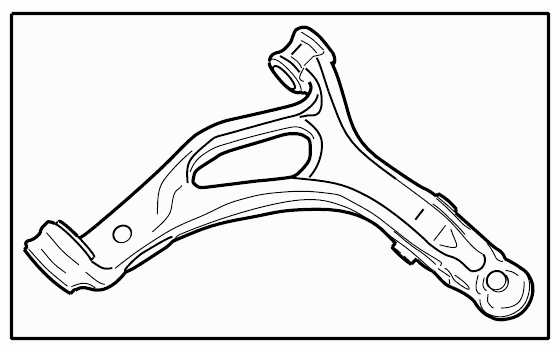

Fig 1: Identifying Lower Trailing Arm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

1. Install in reverse order.

   Information

   • The entire threaded parts of the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on the wheels, or the wheel suspension is being raised with a universal vehicle lift. -Dimension X- , from → Control value: 502 mm+/-10 mm corresponds to the vehicle position.

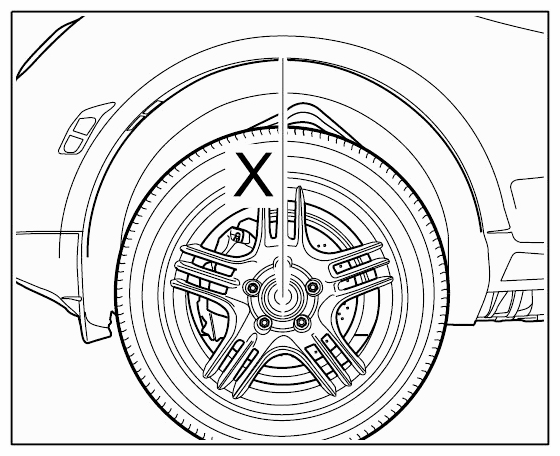

     Fig 2: Identifying Universal Vehicle Lift Dimension

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • Visually inspect all parts.
   • Replace self-locking nuts.
   • Replace all expansion screws (screws which are fitted with torque angle tightening procedure).
   • Use correct tightening torques and torque angle.

Use an intermediate layer (hard rubber). Do not damage the brake cover plate.

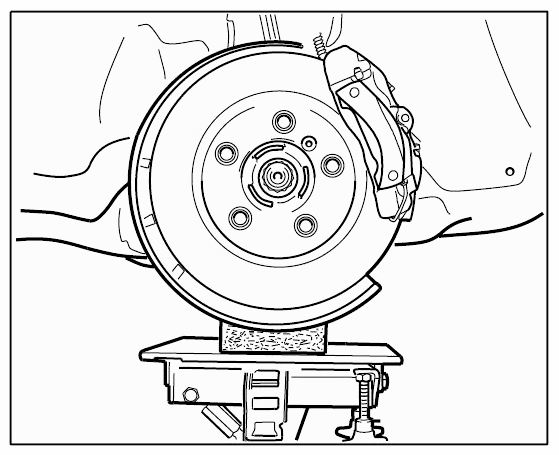

Fig 3: Precaution For Lifting Wheel Suspension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws are Dacromet-coated and must not be greased.
