Removing Upper Trailing Arm

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

1. Unscrew plastic nuts -arrows-  on the front wheel housing liner.

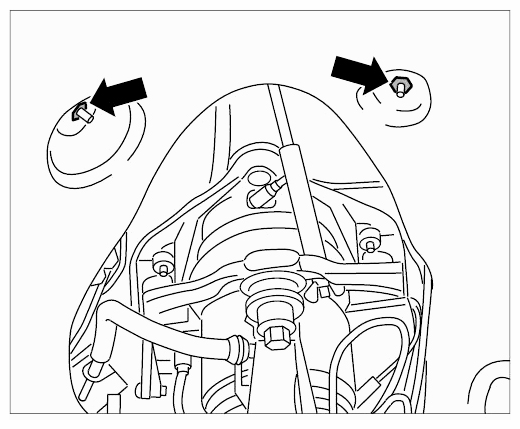

   Fig 1: Locating Front Wheel Housing Liner Plastic Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fix upper axle strut with spring compressor VW 552.  This involves tensioning the axle strut slightly because otherwise the top ball joint can be damaged. When doing this, the -Federspanner-  is pushed through the hole in the trailing arm, engaged in the upper opening of the wheel housing (double panel) and in the trailing arm and tightened with the nut. This is only necessary if the same control arm is reinstalled.

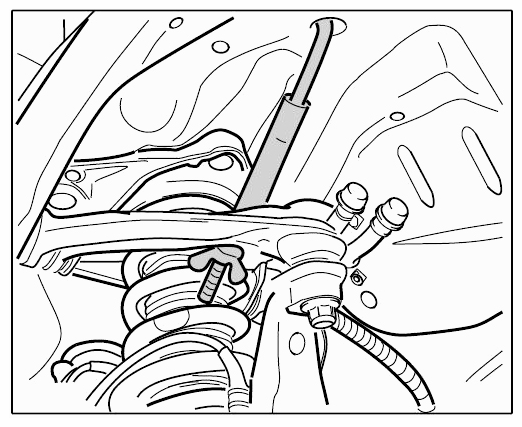

   Fig 2: Fixing Upper Axle Strut Using Spring Compressor VW 552

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unlock plug from HBA -A-  and remove -arrow-  .

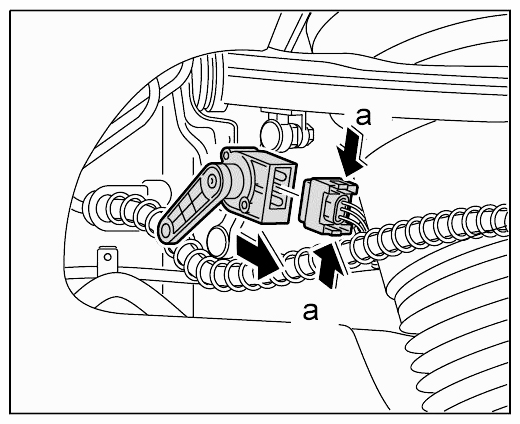

   Fig 3: Unlocking Plug From HBA

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release lock nut and press ball joint off with the press-out tool T10187.

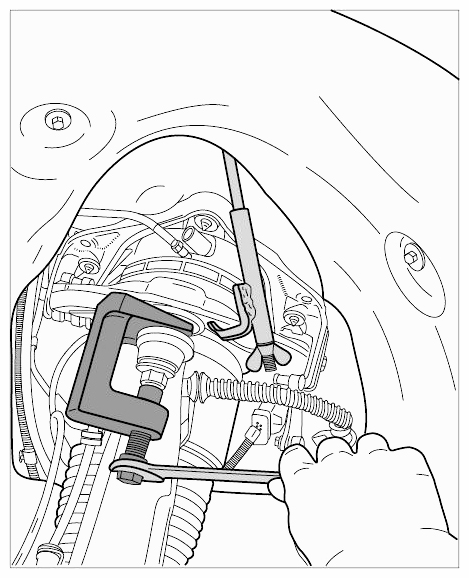

   Fig 4: Pressing Ball Joint Off Using Press-Out Tool (T10187)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove spring strut. → Removing Front Spring Strut
6. Unscrew fastening screws at the sides and remove axle strut.
7. If control arm does not have to be used again, HBA sensor must be fitted on new control arm.
