WM 400619 Removing And Installing Front-Axle Carrier (All Models): Tools

Designation	Type	Number	Description
mounting frame	Commercially available tool

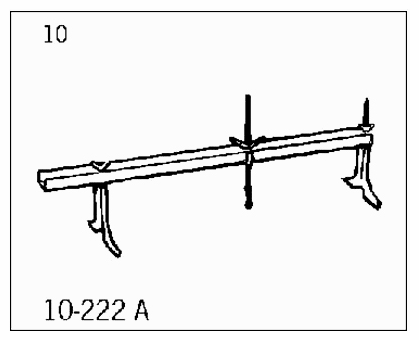

Support bracket	VW tool	10-222 A

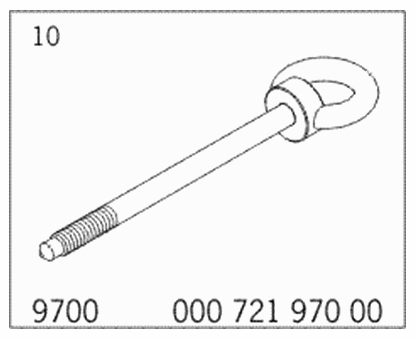

Transport eyebolt	Special tool	9700

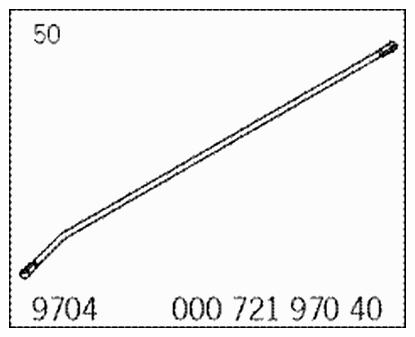

bonnet stay	Special tool	97040

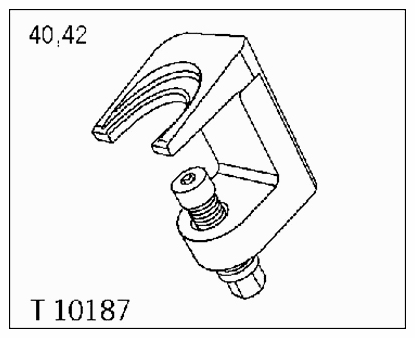

press-out tool	VW tool	T10187

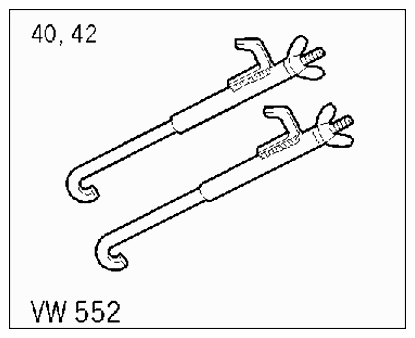

spring compressor	VW tool	VW 552

Fig 1: Identifying Support Bracket (10-222 A)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

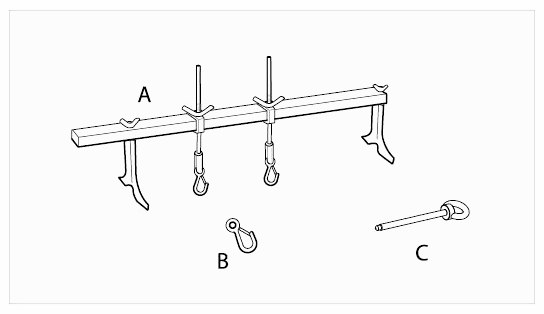

1. -A- - Support bracket 10-222 A
2. -B-  - Spring hook or chain - for extending the threaded rods
3. -C- - Transport eyebolt 9700

Fig 2: Identifying Transport Eyebolt (9700)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

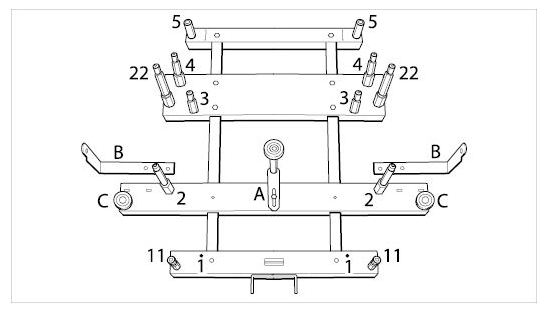

1. -A-  - Mounting frame
2. -1-  - Mount - for mounting the front-axle carrier
3. -3-  - Mount - for mounting the front-axle carrier
4. -4-  - Positioning guide - for positioning the mounting frame
