Installing Rear Retaining Strip And Retaining Bracket

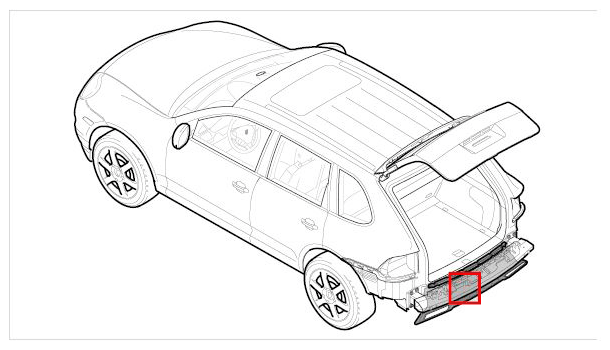

Fig 1: Identifying Installation Position Of Retaining Strip And Retaining Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Install rear retaining strip and retaining bracket.

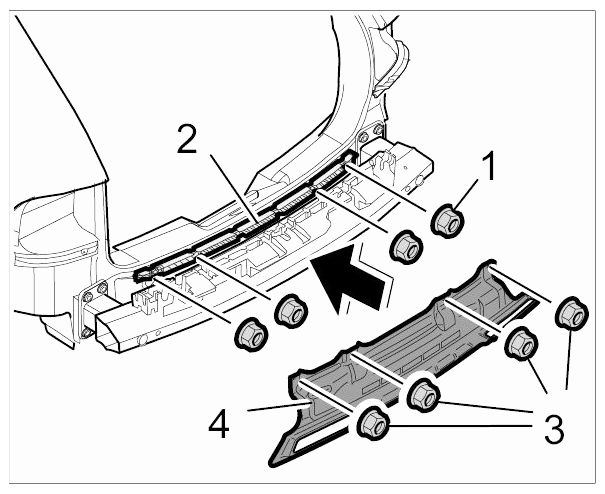

   Fig 2: Installing Rear Retaining Strip And Retaining Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Position rear retaining strip -2-  .
   2. 1.2. Screw in and tighten the fastening nuts -1-  . → Tightening torque: 2 Nm (1.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
   3. 1.3. Fit retaining bracket -4-  .
   4. 1.4. Screw in fastening nuts -3-  . → Tightening torque: 8 Nm (6 ftlb.)
