Removing Side Guide Rail

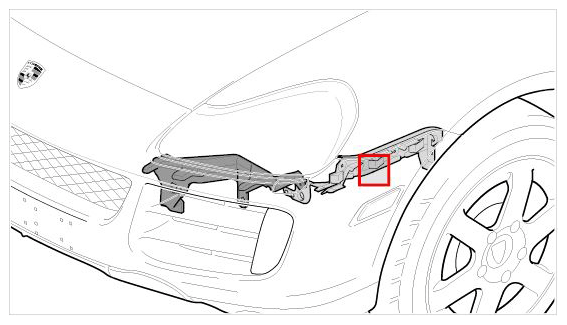

Fig 1: Identifying Installation Position Of Side Guide Rail

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only if subsequent repair work is carried out on the wing.

1. Remove side guide rail.
   1. 1.1. Unscrew fastening screws -2 and 3-  .
   2. 1.2. Remove side guide rails -1-  by pulling them forward -arrow A-  .
   3. 1.3. Check expander nuts -4-  and unclip -arrow B-  and replace them if necessary.

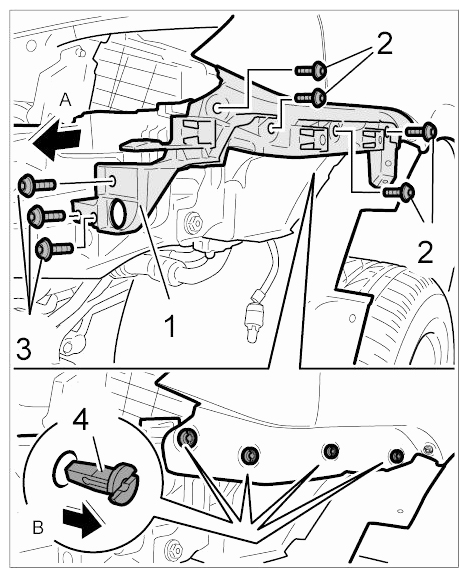

      Fig 2: Removing Side Guide Rail

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
