Installing Key Bit

Use a new remote control and insert the key bit -arrow- at the correct installation position (groove).

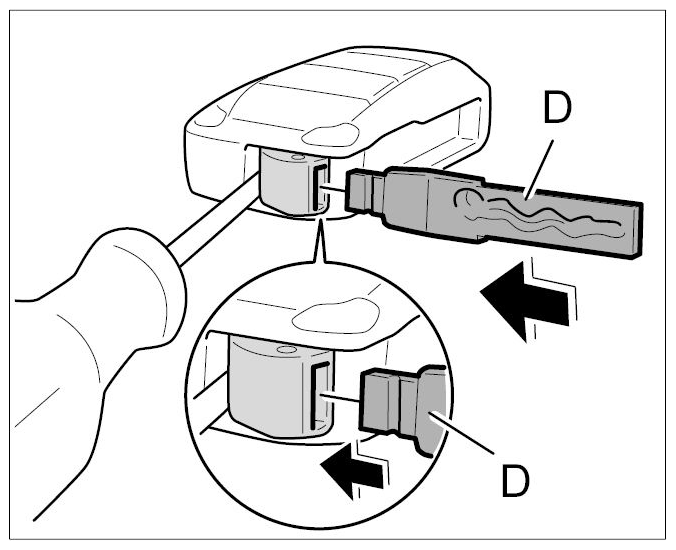

Fig 1: Installation Position Of Key Bit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert a new roll pin -see Fig 2 - for securing the key bit using the pliers and centre the spring steel (max. diameter 1.5 mm) using a tool such as a mandrel. Roll pin must not rub on the remote control housing.

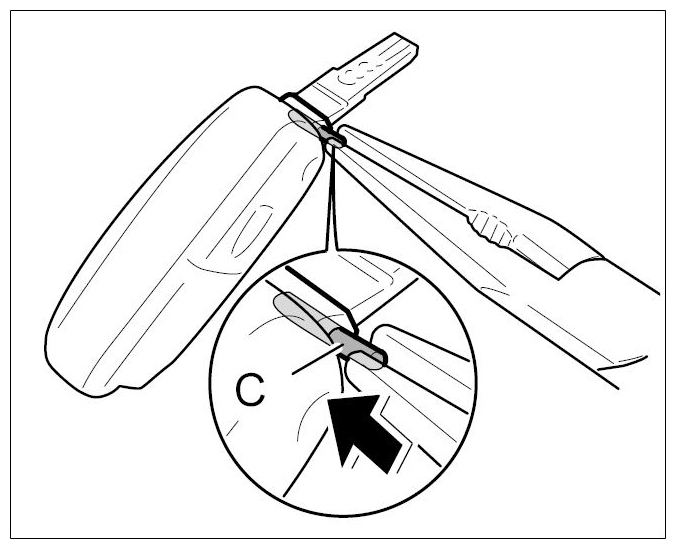

Fig 2: Installing Roll Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
