Removing Front Spoiler

  1. Press locking pins through and unclip the expanding clip -1-  .
  2. Unclip the front spoiler -2-  from the front apron -3-  (-arrows-  ).

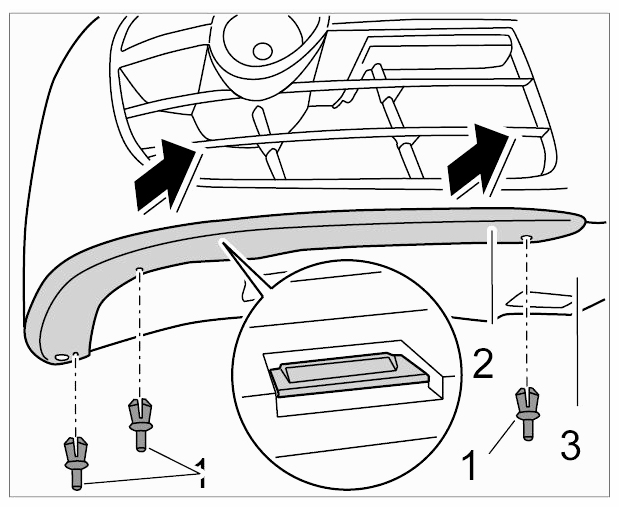

    3. Fig 1: Removing Front Spoiler
    G09590924Courtesy of PORSCHE CARS NORTH AMERICA, INC.
