Removing Support

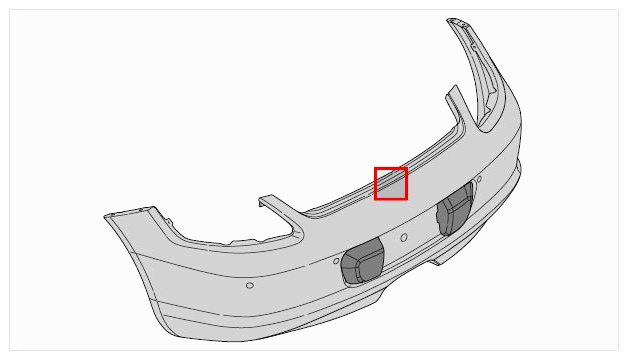

Fig 1: Identifying Rear Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• When removing the support, do not loosen the retaining clips by placing the screwdriver between the retaining clips and the rear end ribs!
• Use new retaining clips for installation.

1. Move retaining clips -3-  as far as possible to one side and open up with a screwdriver -4- -Arrow A-  . Remove retaining clips -3-  .
2. Disengage support -2-  in -direction of Arrow B-  from rear apron -1-  .

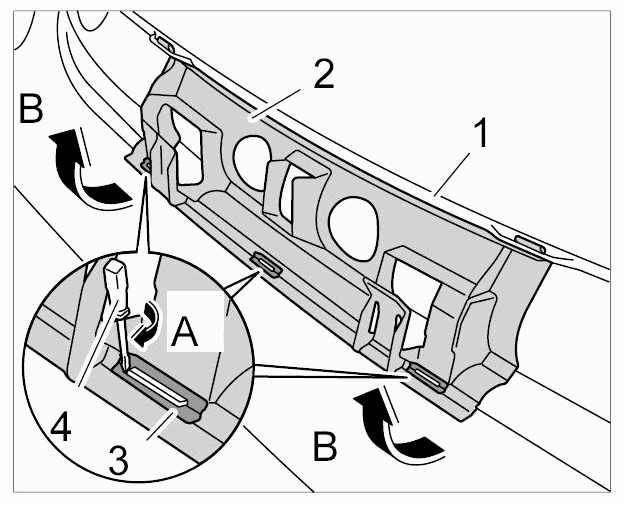

Fig 2: Removing Rear Apron Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
