Removing Cap

  1. Carefully press out the cap -2-  with a screwdriver.
  2. Pull the securing cord -3-  for the cap out of the rear apron -1-  (-arrow-  ).

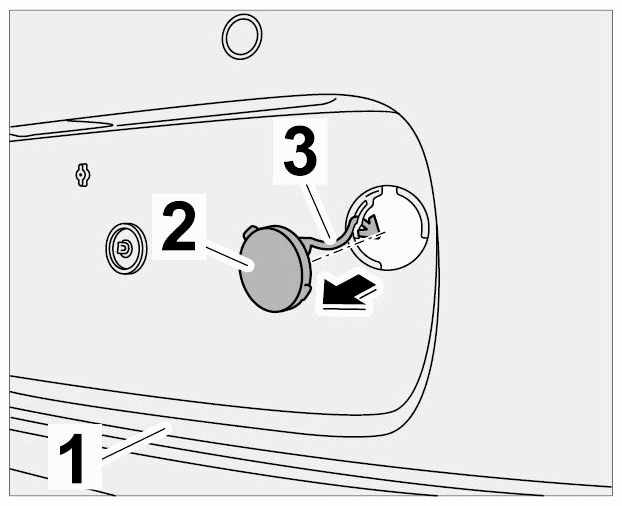

    3. Fig 1: Removing Retaining Frame Cap
    G09590681Courtesy of PORSCHE CARS NORTH AMERICA, INC.
