Removing Front Retaining Strip

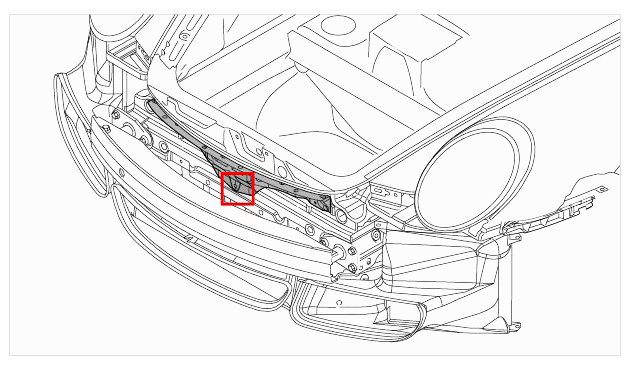

Fig 1: Overview Of Front Retaining Strip
G09590609Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening nuts -2-  and remove front retaining strip -1-  .

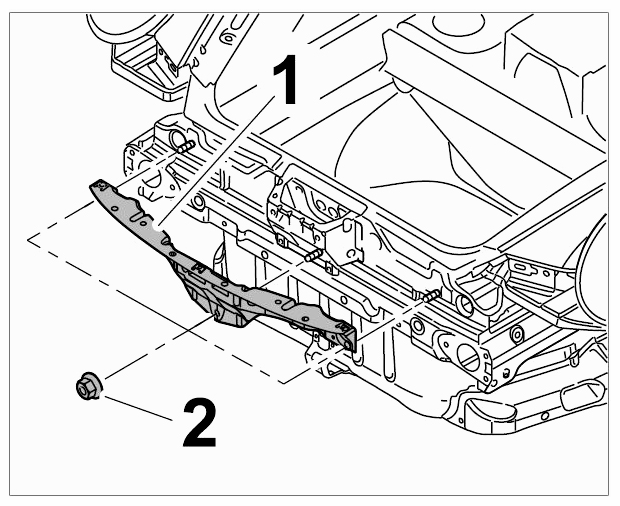

    Fig 2: Identifying Front Retaining Strip And Mounting Nuts
    G09590610Courtesy of PORSCHE CARS NORTH AMERICA, INC.
