Removing Retaining Clips

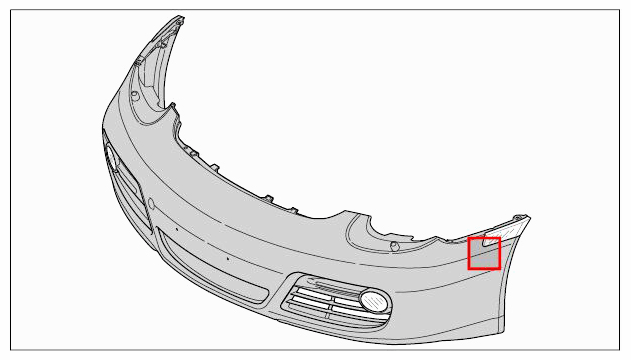

Fig 1: Overview Of Front Apron
G09590597Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pull the retaining clips at the sides -2, 3-  off the front apron -1-  (-arrow-  ).
  2. Pull off fastening nuts -4-  (-arrows-  ).
  3. Check side retaining clips -2, 3-  and fastening nuts -4-  and replace them if necessary.
    4. Fig 2: Removing Front Apron Retaining Clips
    G09590598Courtesy of PORSCHE CARS NORTH AMERICA, INC.
