Removing Cap

  1. Carefully press the cap -2-  out with a screwdriver. Pull out the securing cord -3-  that joins the cap -2-  and front apron -1-  (-arrow-  ).

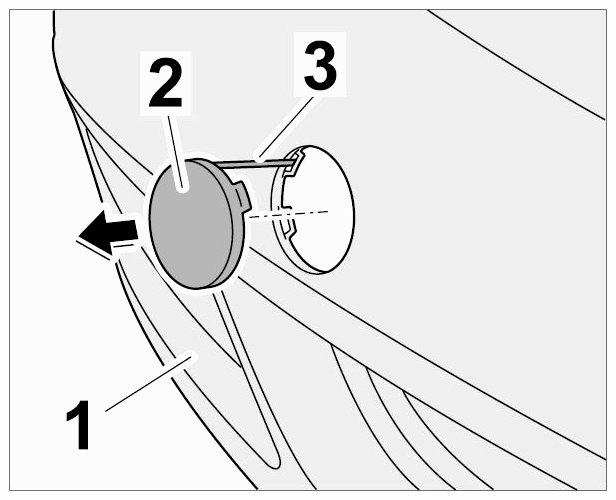

    Fig 1: Removing Front Apron Cap
    G09590599Courtesy of PORSCHE CARS NORTH AMERICA, INC.
