Pulling Off Joining Latch

  1. Pull joining latch -2-  out of the front apron -1-  (-arrows-  ).

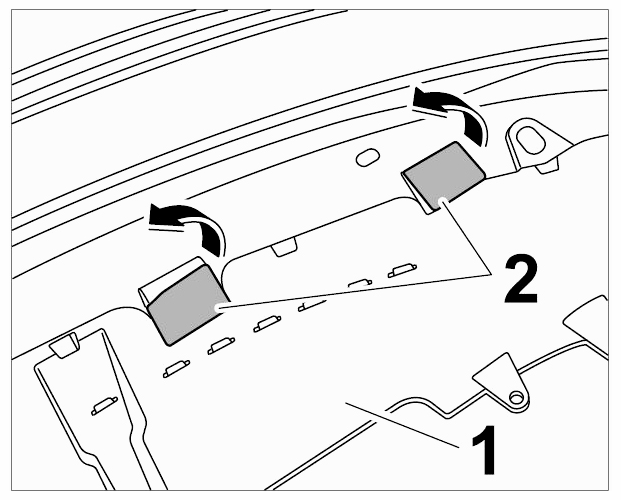

    Fig 1: Removing Front Apron Joining Latch
    G09590600Courtesy of PORSCHE CARS NORTH AMERICA, INC.
