Installing Spray Nozzle For Headlight Cleaning System

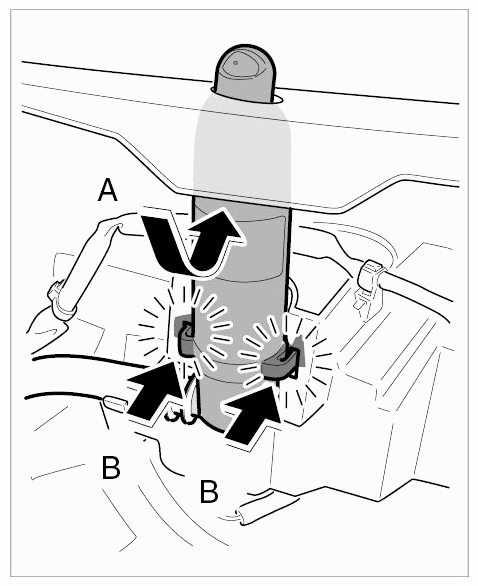

Insert spray nozzle in front apron until it engages.

Fig 1: Inserting Spray Nozzle In Front Apron
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

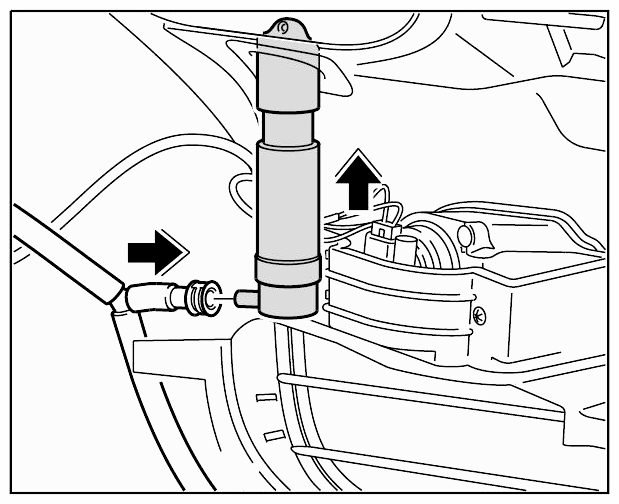

Push water hose onto the spray nozzle until it engages securely.

Fig 2: Pushing Water Hose Onto Spray Nozzle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
