Plug-In Couplings As Of Model Year 2009

Plug-in coupling is loosened by releasing it and then pulling the lines apart. Special tool 9780 is required for releasing plug-in couplings!

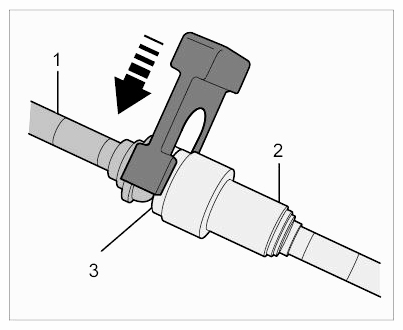

Fig 1: Disconnecting Plug-In Couplings With Special Tool

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lines are joined by plugging them together.

The plug-in coupling on the steering lines (pressure and return line) is the same.

But the line diameter is different (as before).

Do not confuse the lines when joining them (plugging together) if possible.

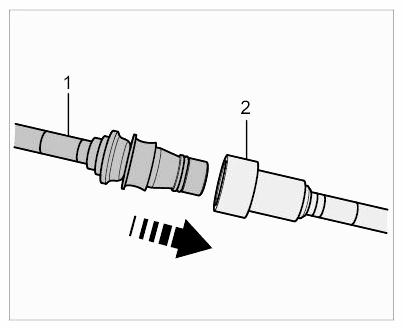

Fig 2: Connecting Plug-In Couplings

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
