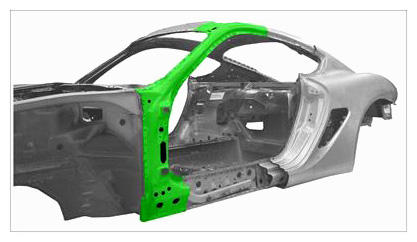

Removing Hinge Pillar Reinforcement

Information

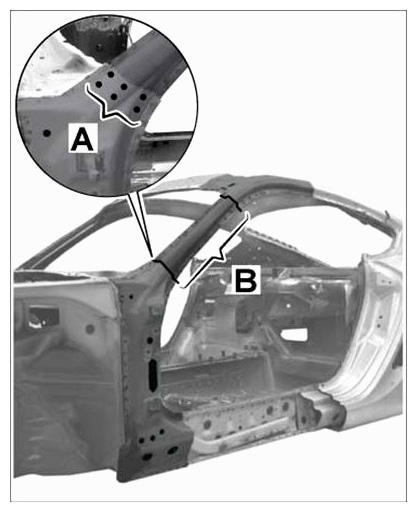

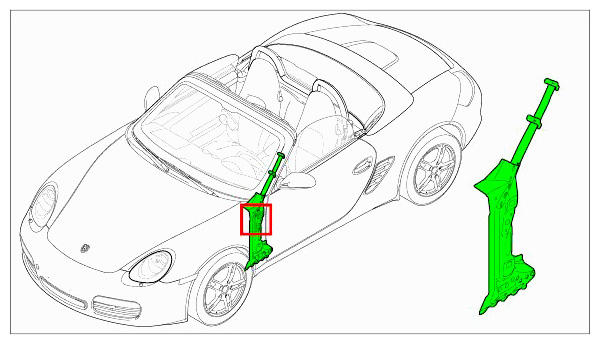

Possible separation points on hinge pillar reinforcement

• If it is certain that there has been no deformation of the hinge pillar reinforcement structure, the lower hinge pillar reinforcement can be separated in the area -A- for the following repair work.
• The possible separation points on the hinge pillar reinforcement can only be at the marked area -B-  .

Fig 2: Identifying Possible Separation Points

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

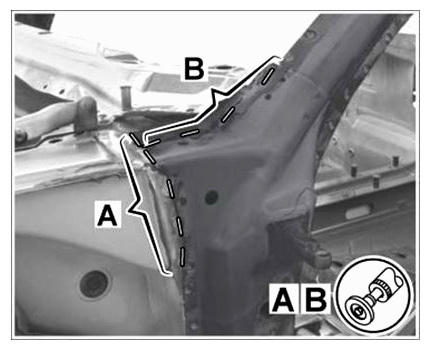

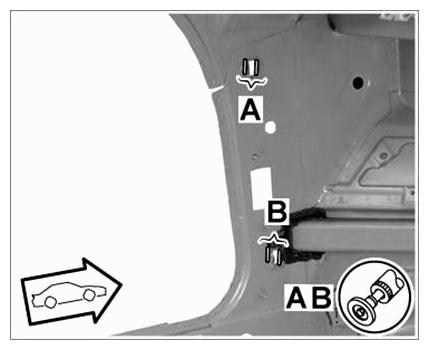

1. 4.1. Separate inert-gas welded seams in area -A-  and -B-  using a parting grinder.

Fig 4: Identifying Welded Seam Applying Area (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

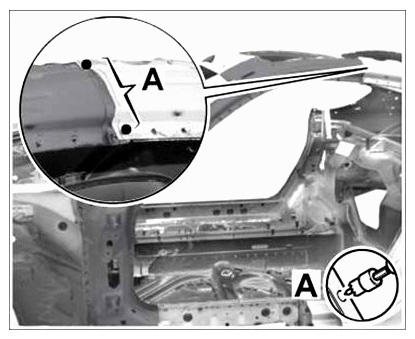

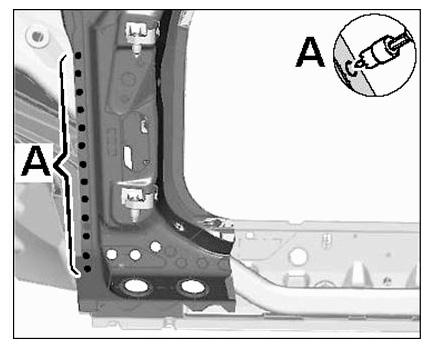

1. 5.1. Mill off spotwelds in area -A-  using a spotweld cutter.

Fig 5: Identifying Spotwelding Area (A)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

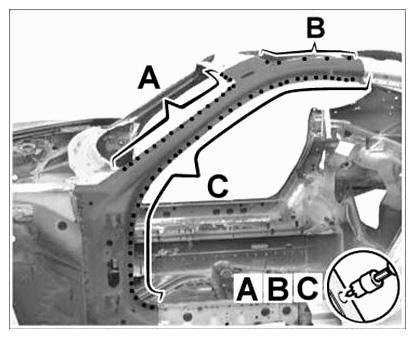

1. 6.1. Mill off spotwelds in areas -A, B, C-  using a spotweld cutter.

Fig 6: Identifying Spotwelding Area (A, B And C)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

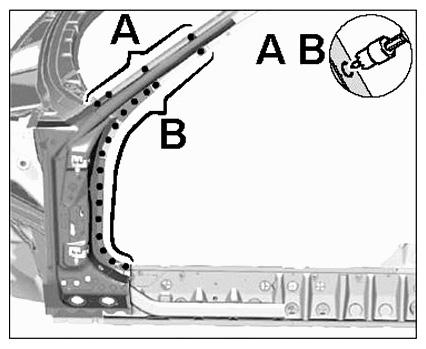

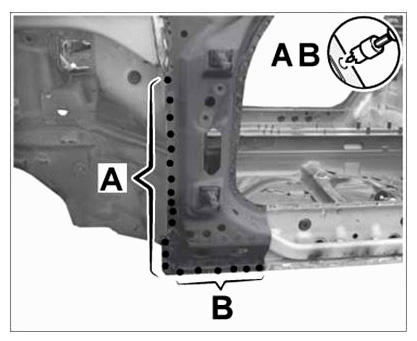

1. 7.1. Mill off spotwelds in area -A-  and -B-  using a spotweld cutter.

Fig 7: Identifying Spotwelding Area (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 8.1. Separate inert-gas welded seams in area -A-  and -B-  using a parting grinder.

Fig 8: Identifying Welded Seam Applying Area (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

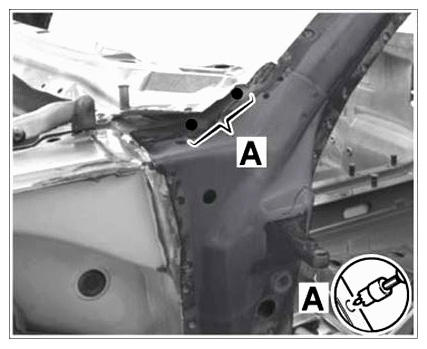

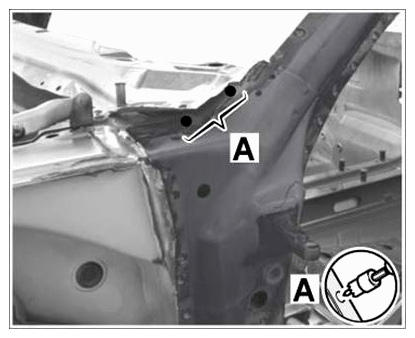

1. 9.1. Mill off spotwelds in area -A-  using a spotweld cutter.

Fig 9: Identifying Spotwelding Area (A)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Separating body parts

• In the case of bonded panel joints with a hardened bonded layer on the outer panel, apply a generous amount of heat to heat up the outer panel in the area of the spotwelds. →  Diagram Of Body Bonding Points And Sealing Elements
• After removing the loosened body part, old adhesive must be removed and any uneven spots sanded down. The flange area must then be pre-treated for bonding. For the procedure see: Information on the use of structural adhesive in vehicle manufacturing →  Information On The Use Of Structural Adhesives In Vehicle Construction

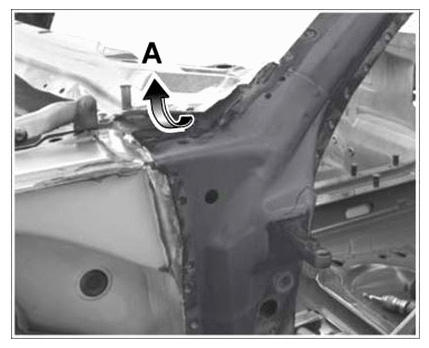

1. 10.1. Heat up bonded joints between hinge pillar reinforcement and body using the Leister Elektron hot-air gun   and remove hinge pillar reinforcement.

1. 4.1. Separate inert-gas welded seams in areas -A-  and -B-  using a parting grinder.

Fig 3: Identifying Welded Seam Applying Area (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 5.1. Mill off spotwelds in area -A-  using a spotweld cutter.

Fig 4: Identifying Spotwelding Area (A)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 6.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.

Fig 5: Identifying Spotwelding Area (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 7.1. Mill off spotwelds in area -A-  using a spotweld cutter.

Fig 6: Identifying Spotwelding Area (A)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 8.1. Separate inert-gas welded seams in areas -A-  and -B-  using a parting grinder.

Fig 7: Identifying Welded Seam Applying Area (A And B)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Separating body parts

• In the case of bonded panel joints with a hardened bonded layer on the outer panel, apply a generous amount of heat to heat up the outer panel in the area of the spotwelds. →  Diagram Of Body Bonding Points And Sealing Elements
• After removing the loosened body part, old adhesive must be removed and any uneven spots sanded down. The flange area must then be pre-treated for bonding. For the procedure see: Information on the use of structural adhesive in vehicle manufacturing →  Information On The Use Of Structural Adhesives In Vehicle Construction

1. 9.1. Heat up bonded joints between hinge pillar reinforcement and body using the Leister Elektron hot-air gun   and remove hinge pillar reinforcement.
