Removing Cover For Rear Underbody: Notes

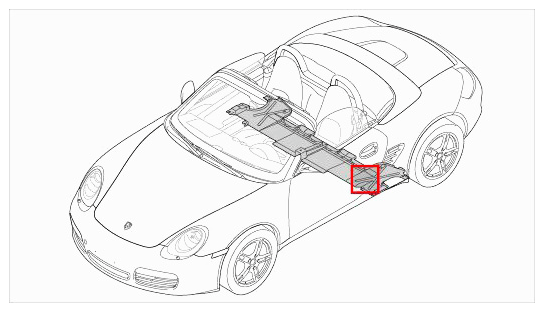

Fig 1: Cover For Rear Underbody Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -1-  and fastening nuts -2, 4-  .

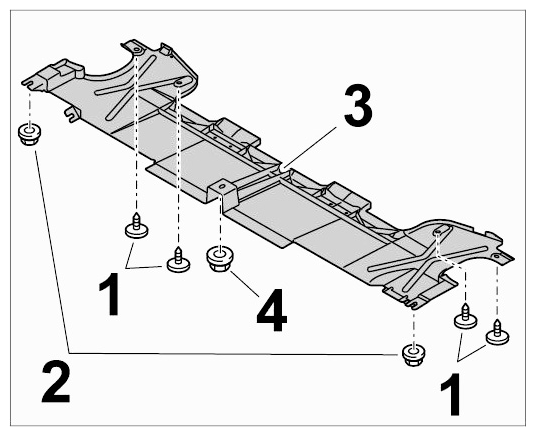

   Fig 2: Identifying Rear Underbody Cover, Fastening Screws And Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull cover for rear underbody -3-  out of the overlap.
