Removing Seat Cross Member

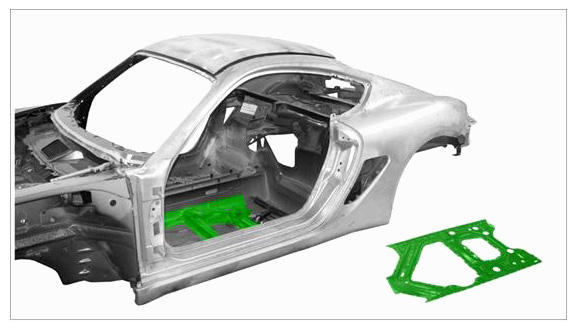

Fig 1: Seat Cross Member Component Location
G09589052Courtesy of PORSCHE CARS NORTH AMERICA, INC.

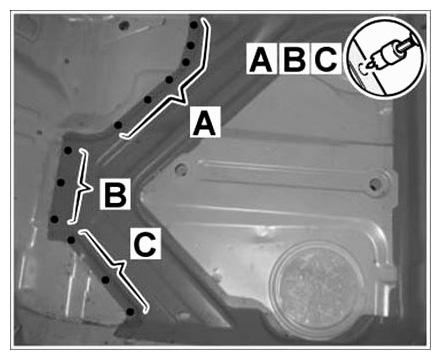

  1. Mill off spotwelds
    1. 1.1. Mill off spotwelds in areas -A, B, C-  using a spotweld cutter.
    Fig 2: Identifying Spotwelding Area (A, B And C)
    G09589053Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Mill off spotwelds
    1. 2.1. Mill off spotwelds in area -A-  and -B-  using a spotweld cutter.

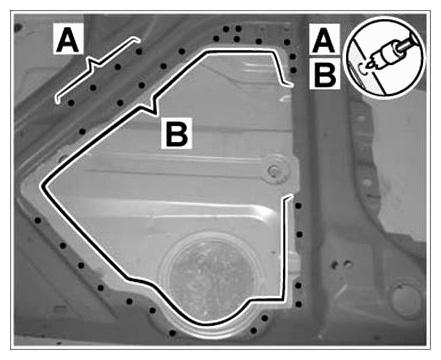

    Fig 3: Identifying Spotwelding Area (A And B)
    G09589054Courtesy of PORSCHE CARS NORTH AMERICA, INC.

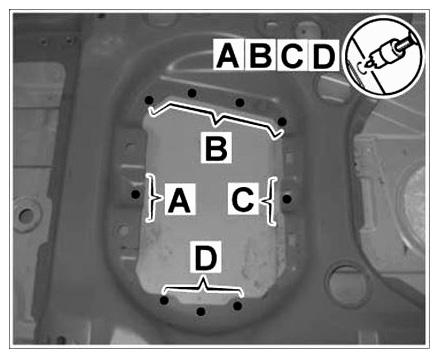

  3. Mill off spotwelds
    1. 3.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.
    Fig 4: Identifying Spotwelding Area (A, B, C And D)
    G09589055Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Mill off spotwelds
    1. 4.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter.

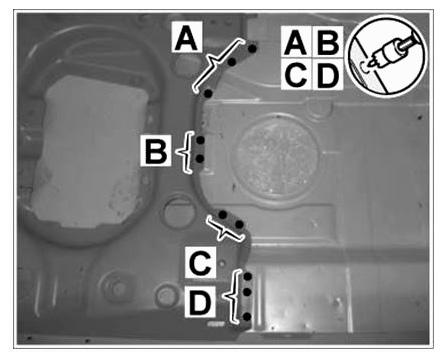

    Fig 5: Identifying Spotwelding Area (A, B, C And D)
    G09589056Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Mill off spotwelds
    1. 5.1. Mill off spotwelds in area -A-  using a spotweld cutter.

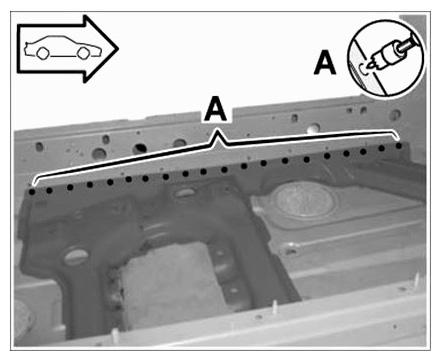

    Fig 6: Identifying Spotwelding Area (A)
    G09589057Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Separate inert-gas welded seams
    1. 6.1. Separate inert-gas welded seams in area -A-  using a parting grinder.

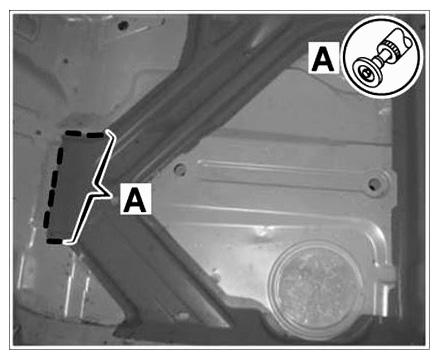

    Fig 7: Identifying Welded Seam Applying Area (A)
    G09589058Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Separate inert-gas welded seams
    1. 7.1. Separate inert-gas welded seams in area -A-  and -B-  using a parting grinder.

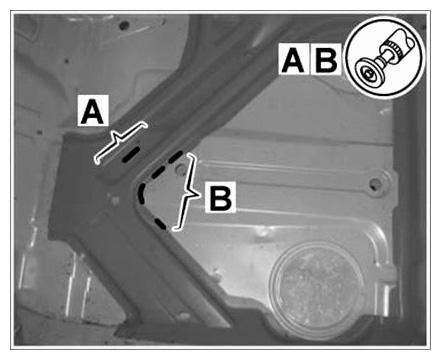

    Fig 8: Identifying Welded Seam Applying Area (A And B)
    G09589059Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Separate inert-gas welded seams
    1. 8.1. Separate inert-gas welded seams in area -A-  using a parting grinder.

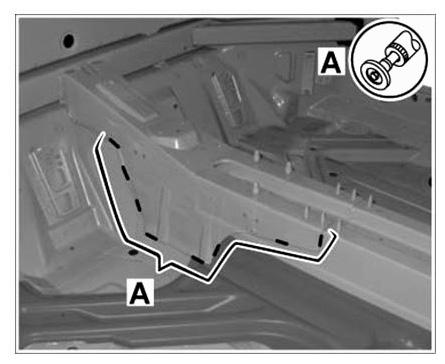

    Fig 9: Identifying Welded Seam Applying Area (A)
    G09589060Courtesy of PORSCHE CARS NORTH AMERICA, INC.

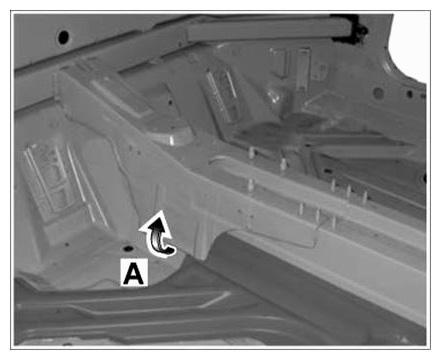

  9. Bend reinforcement of center tunnel in overlapping area slightly upward -arrow A-  .
    Fig 10: Bending Up Reinforcement On Centre Tunnel
    G09589061Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Mill off and separate welded joints
    1. 10.1. Mill off spotwelds in area -A-  using a spotweld cutter (2 plate thicknesses).
    2. 10.2. Mill off spotwelds in area -C-  using a spotweld cutter.
    3. 10.3. Separate inert-gas welded seam in area -B-  using a parting grinder.

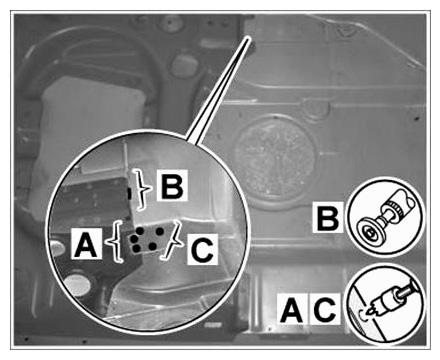

    Fig 11: Identifying Welding Seam Area (A, B And C)
    G09589062Courtesy of PORSCHE CARS NORTH AMERICA, INC.

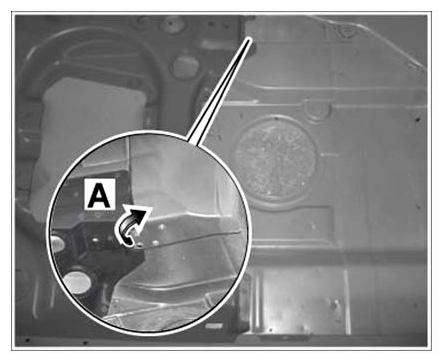

  11. Bend reinforcement of center tunnel in overlapping area slightly upward -arrow A-  .
    Fig 12: Bending Up Reinforcement On Centre Tunnel
    G09589063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

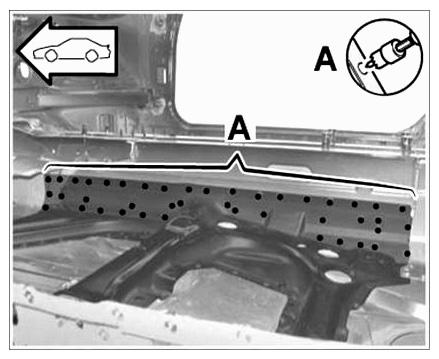

  12. Mill off spotwelds
    1. 12.1. Mill off spotwelds in area -A-  using a spotweld cutter.
    Fig 13: Identifying Spotwelding Area (A)
    G09589064Courtesy of PORSCHE CARS NORTH AMERICA, INC.
