Removing Outer Lower Side Member

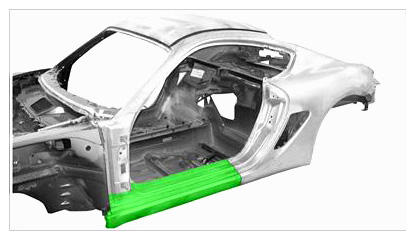

Fig 1: Outer Lower Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Determining the cut
1. 1.1. Position separation point -A- so that the spare part for the outer side member overlaps by approx. 40 mm. Mark the separation point.
2. 1.2. Position separation point -B- so that the spare part for the outer side member overlaps by approx. 60 mm. Mark the separation point.

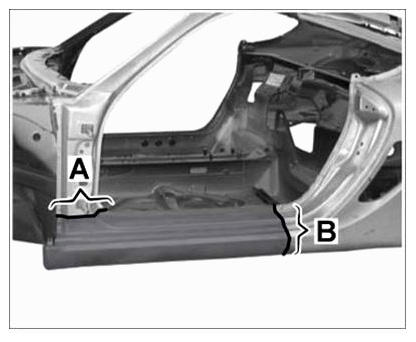

Fig 2: Identifying Outer Side Member Cutting Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cutting through outer side member
1. 2.1. Cut through the outer side member at the marked connection point -A- using the oscillating body saw. Do not damage the internal components while doing so.
2. 2.2. Cut through the outer side member at the marked connection point -B- using the oscillating body saw. Do not damage the internal components while doing so.

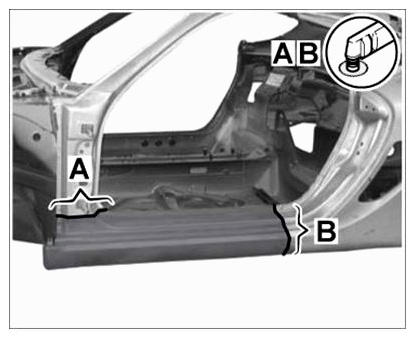

Fig 3: Identifying Outer Lower Side Member Connection Points (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 3.1. Mill off spotwelds in area -A- using a spotweld cutter.

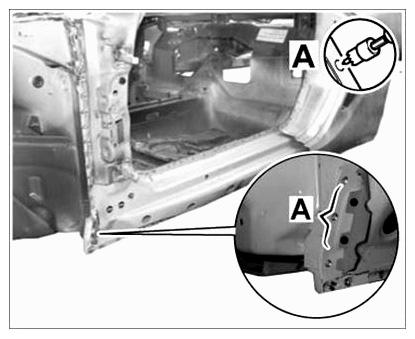

Fig 4: Identifying Spotwelding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 4.1. Mill off spotwelds in area -A- using a spotweld cutter.

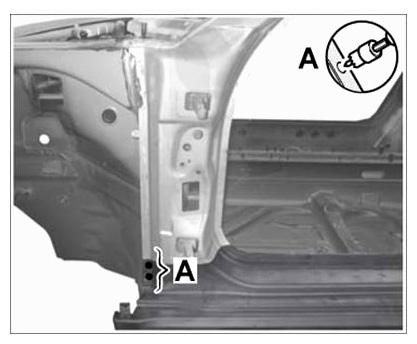

Fig 5: Identifying Spotwelding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separating spotwelds
1. 5.1. Separate spotwelds in area -A- using a parting grinder.

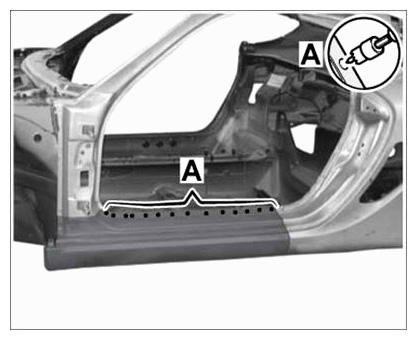

Fig 6: Identifying Spotwelding Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cutting the web plate
1. 6.1. Cut through the separator in areas -A, B, C- using the body saw.

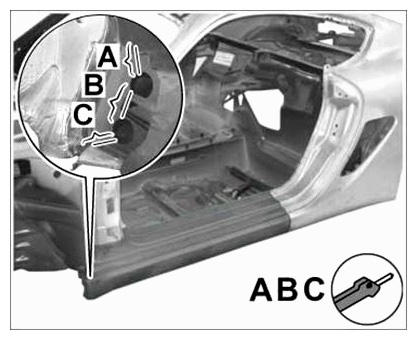

Fig 7: Identifying Web Plate Cutting Area (A, B And C)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

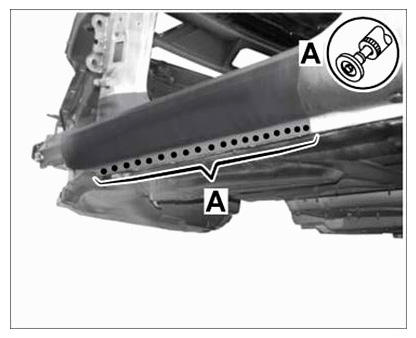

Milling off the web plate
1. 7.1. Mill off separator in area -A- using a spotweld cutter.
Fig 8: Identifying Web Plate Welding Area
