Removing Outer Lower Side Member

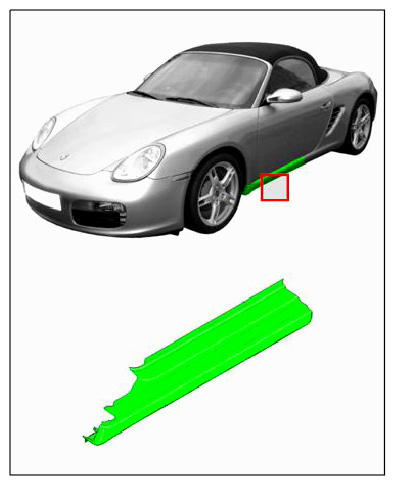

Fig 1: Outer Lower Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Determining cut
1. 1.1. Position the cut 1 so that the replacement outer lower side member overlaps by approx. 60 mm. Mark the cut.

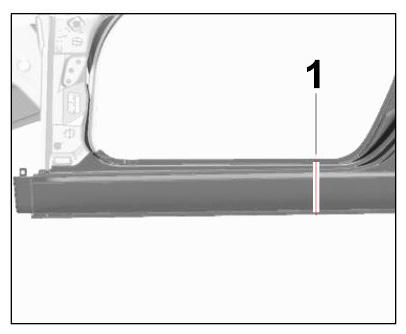

Fig 2: Identifying Outer Lower Side Member Cutting Mark
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mill off spotwelds on the outer lower side member.
1. 2.1. Mill off spot welds between the outer and inner lower side members in areas A and B using a spotweld cutter.

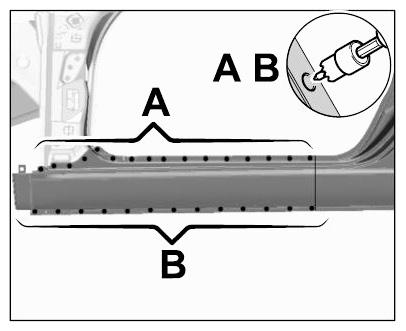

Fig 3: Identifying Outer Lower Side Member Spotwelding Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cutting the web plate
1. 3.1. Cut through the web plate in area C using the body saw.

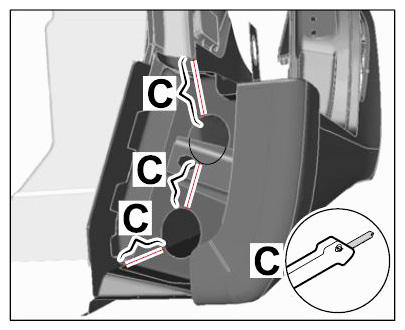

Fig 4: Identifying Web Plate Cutting Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cutting through the lower side member
1. 4.1. Cut through the lower side member at the marked area D using the body saw.

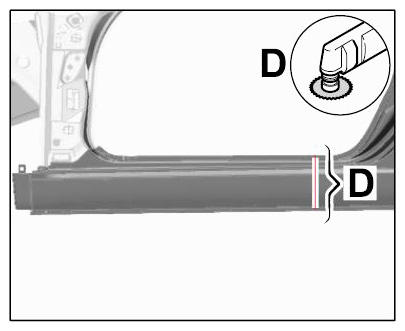

Fig 5: Identifying Lower Side Member Cutting Area (D)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off the web plate
1. 5.1. Using a spotweld cutter, mill off the spotwelds between the web plate and inner lower side member in area E .

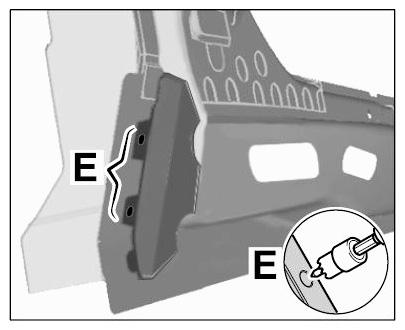

Fig 6: Identifying Web Plate Spotwelding Area (E)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
