Removing Control Unit For Memory Seat Adjustment

NOTE: Voltage drop
  • Risk of irreparable damage to control unit
  • Risk of damage to control unit
  • Fault entries in the control unit
  • Coding in the control unit is aborted
  • Malfunctions in control unit, even during programming

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A to the vehicle battery.

Information

If the control unit must be replaced, first read out the values using the PIWIS Tester 9718.

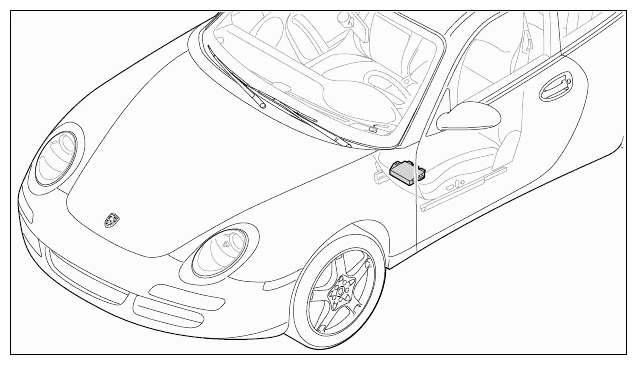

Fig 1: Identifying Installation Position
G09592376Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew the two fastening screws -1-  .

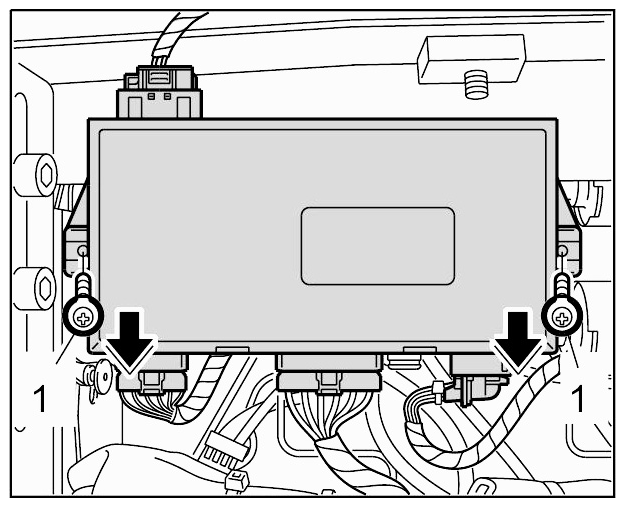

    Fig 2: Removing Control Unit Fastening Screws
    G09592377Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release electric connectors -A-  on the control unit and disconnect them.

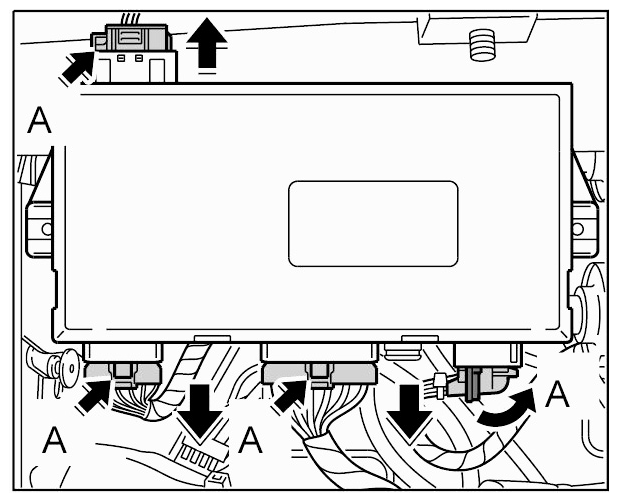

    Fig 3: Disconnecting Control Unit Electric Connectors
    G09592378Courtesy of PORSCHE CARS NORTH AMERICA, INC.
