Removing Cover For Outer Backrest

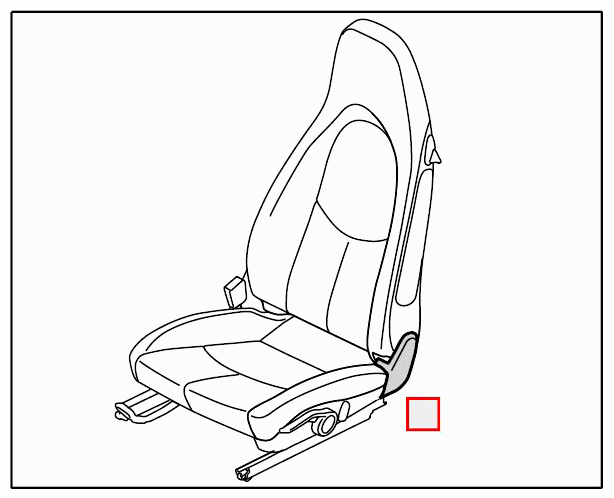

Fig 1: Identifying Backrest Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screw -1- laterally out of the cover -2- .

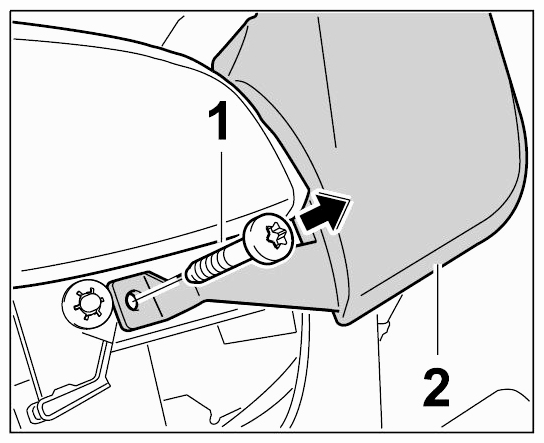

Fig 2: Removing Backrest Cover Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew lower fastening screw -1- out of the cover -2- .

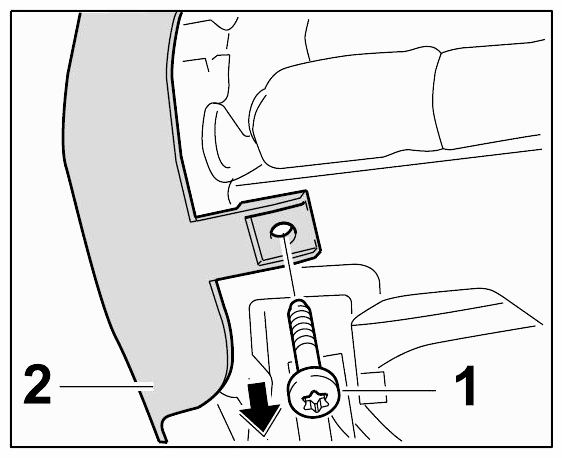

Fig 3: Removing Backrest Cover Lower Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cover -1- at the front -inset A- and remove by pulling backwards in direction of arrow -inset B- .

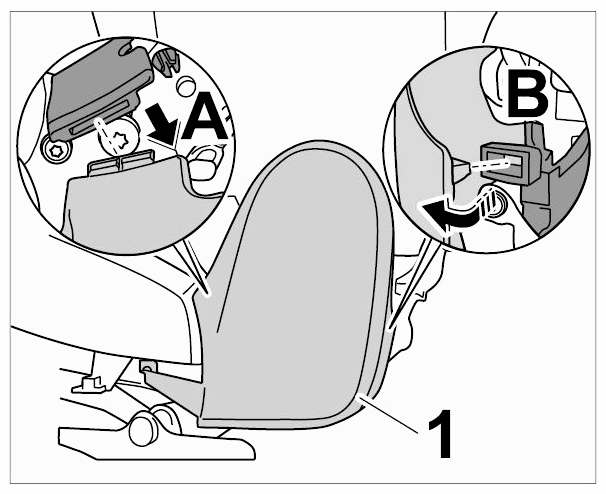

Fig 4: Removing Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
