Installing Backrest Pocket

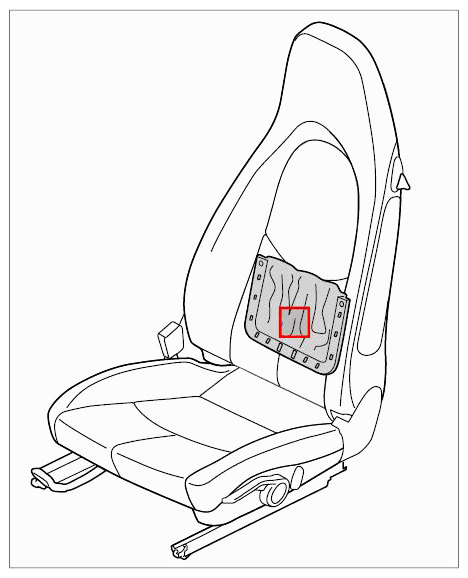

Fig 1: Identifying Installation Position Of Backrest Pocket
G09592704Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Engage backrest pocket -3-  in the backrest shell and press in at the top.
  2. Screw in fastening screws -1-  with washers -2-  on the inside onto the backrest pocket.

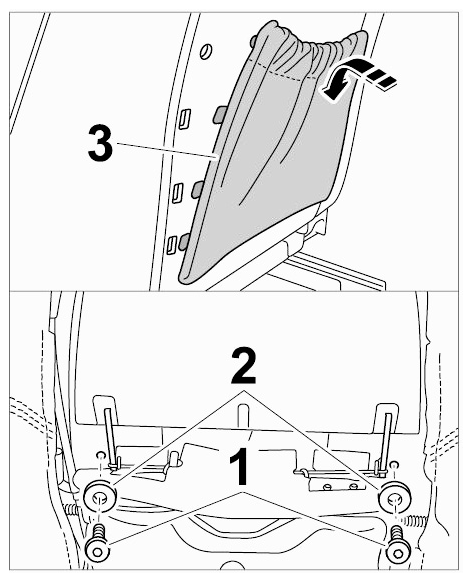

    3. Fig 2: Installing Backrest Pocket
    G09592705Courtesy of PORSCHE CARS NORTH AMERICA, INC.
