Adjusting Front Axle Camber

The camber is adjusted by moving the spring strut transversely.

• Loosen three fastening nuts -arrow-  on the spring strut mount. Move the spring strut transversely until the desired nominal value is reached. To move the spring strut, remove the cap on the piston rod.

  Tighten fastening nuts to the prescribed tightening torque.

  → 4001TW TIGHTENING TORQUES FOR FRONT AXLE

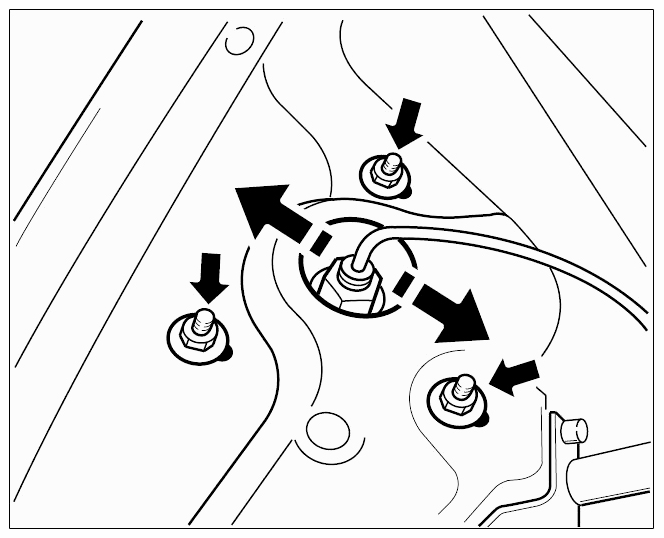

  Fig 1: Adjusting Front Axle Camber

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
