Installing Guide Sleeve: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Fit guide sleeve and apply a thin coat of Optimol MP3.

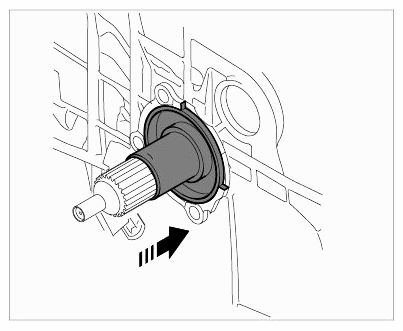

    Fig 1: Fitting Guide Sleeve
    G09586504Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screwing in retaining screws for tab washer.

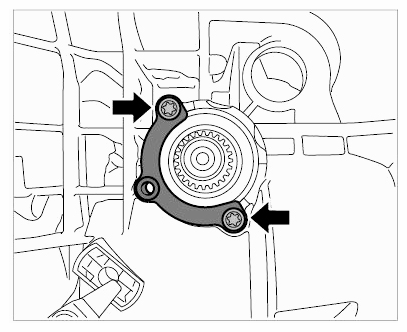

    Fig 2: Locating Retaining Screws For Tab Washer
    G09586505Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Tab washer   Tightening torque 24 Nm (18 ftlb.)
  3. Fit release lever and release bearing.

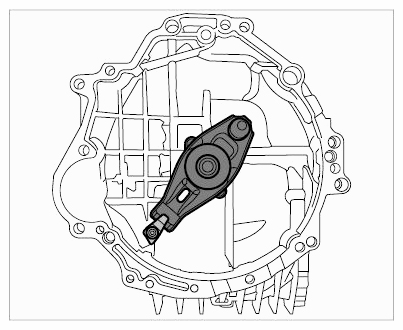

    Fig 3: Identifying Release Mechanism
    G09586506Courtesy of PORSCHE CARS NORTH AMERICA, INC.
