Instructions For Disassembling Transmission Cover

WARNING: This page is about a different variant/trim than selected.

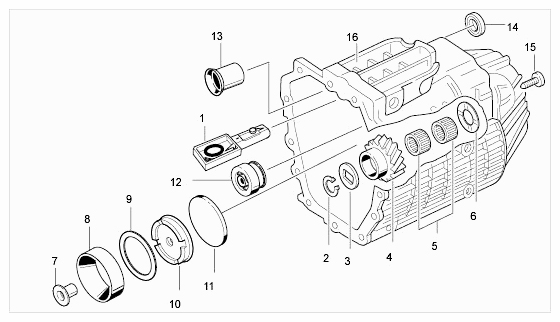

Fig 1: Overview Of Transmission Cover
G09586750Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove retaining sleeve -7-  . The retaining sleeve may be destroyed when it is removed as it does not need to be refitted (it is only required during manufacture of the transmission).

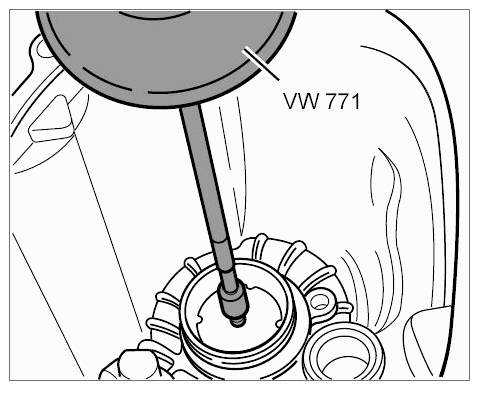

    Fig 2: Removing Out Outer Bearing Ring
    G09586751Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove outer bearing ring -8-  with a suitable internal puller and striker vw 771  .
  3. To remove the rubber plate -11-  , turn sheetmetal screw in rubber plate if necessary and remove rubber plate on sheetmetal screw.
  4. Remove needle-roller bearing with plastic sleeve -12-  using a suitable internal puller and striker vw 771  . The plastic sleeve must be destroyed in order to position the puller.
  5. Remove bushing -13-  with a suitable internal puller and striker vw 771  .
