Instructions For Assembling Transmission Cover

WARNING: This page is about a different variant/trim than selected.

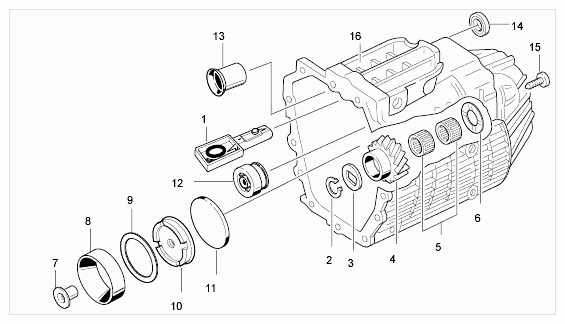

Fig 1: Overview Of Transmission Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fill the shaft seal -14- between the dust and sealing lips with multipurpose grease and drive in with a suitable tubular piece (e.g. vw 423 ). Observe the correct drive-in depth -a = 1 mm- .

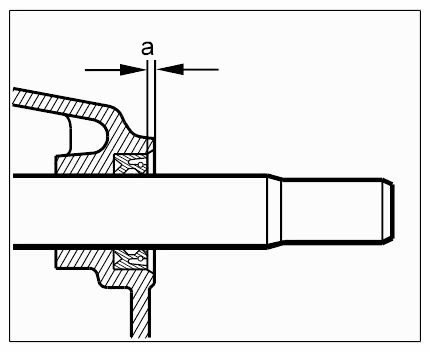

Fig 2: Tapping Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The needle-roller bearing and plastic sleeve must always be replaced.
Press in bushing -13- as far as the stop with pressure pieces (4) 9247/1 and pull-in tool and puller p 254 .
Press needle-roller bearing and plastic sleeve -12- into correct position using auxiliary piece vw 295 a and a suitable tubular piece (e.g. vw 420 ). The large collar of the auxiliary piece vw 295 a is facing the needle-roller bearing. Observe the correct drive-in depth -a = 216- .

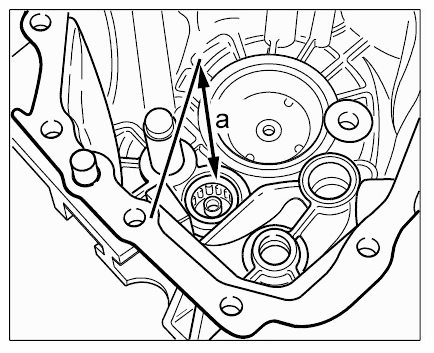

Fig 3: Identifying Needle-Roller Bearing Drive-In Depth
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in outer bearing ring -8- with a pressure piece 3005 and a suitable extension.

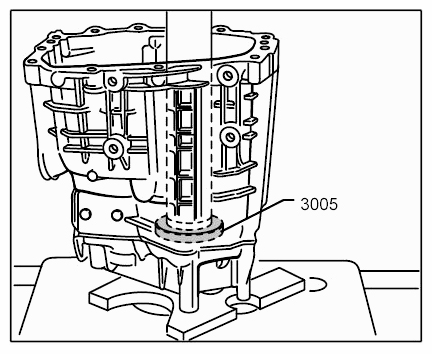

Fig 4: Pressing In Outer Bearing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit transmission cover -16- . To do this, coat cover sealing surfaces lightly with Loctite 574 and screw in Torx screws.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Torx screw		Tightening torque	25 Nm (19 ftlb.)
