Instructions For Disassembling Transmission Housing

WARNING: This page is about a different variant/trim than selected.

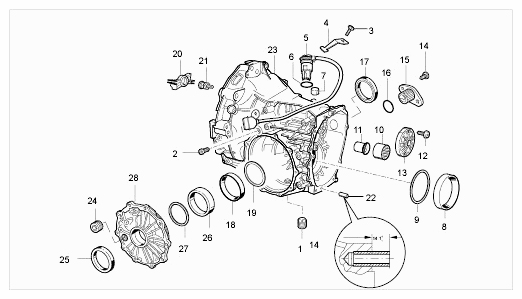

Fig 1: Overview Of Transmission Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

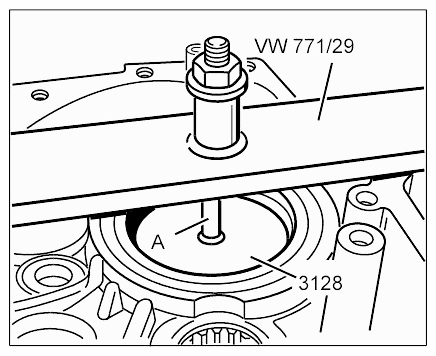

Pull out taper roller bearing outer ring -8- using pressure piece 3128 and bridge vw 771/29 .

Fig 2: Pulling Out Bearing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

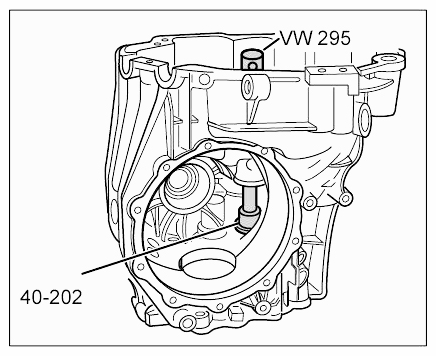

Press out needle-roller bearing for drive shaft -10- using drive-in mandrel vw 295 and pressure piece 40-202 . -A = Schraube M10x135-

Fig 3: Identifying Drive Shaft Needle-Roller Bearing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
