Removal Instructions For Transmission Housing

WARNING: This page is about a different variant/trim than selected.

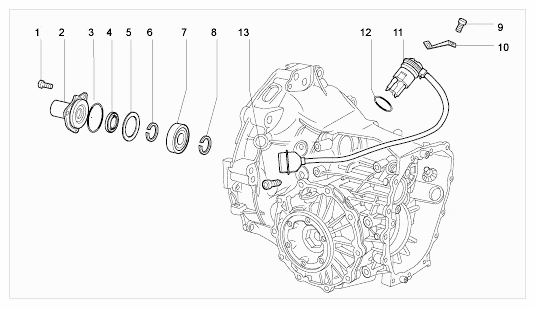

Fig 1: Overview Of Transmission Housing
G09586632Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Drive ball bearing -7-  out of the housing using taper roller bearing puller, Boxster manual transmission Nr.119  .

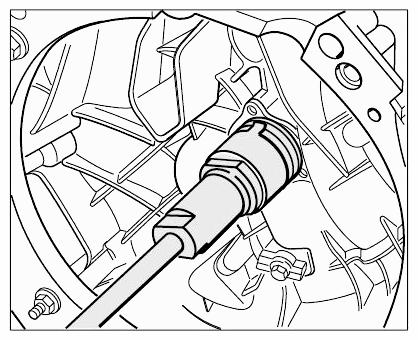

    Fig 2: Driving Out Bearing
    G09586633Courtesy of PORSCHE CARS NORTH AMERICA, INC.
