Removing Accessories

WARNING: This page is about a different variant/trim than selected.

Unscrew fastening nut of exterior shift.

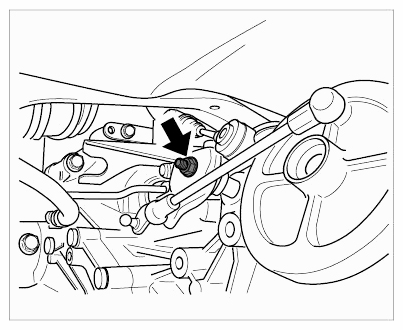

Fig 1: Locating Exterior Shift Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off exterior shift using Schremm 48-2 puller 00000 from shifting shaft.

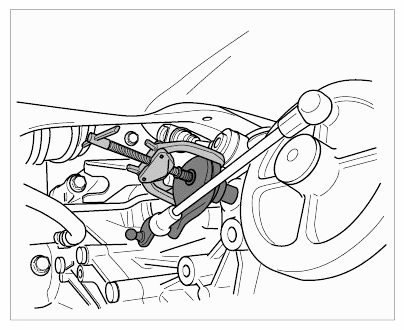

Fig 2: Pulling Off Exterior Shift
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw between clutch slave cylinder and transmission and remove clutch slave cylinder.

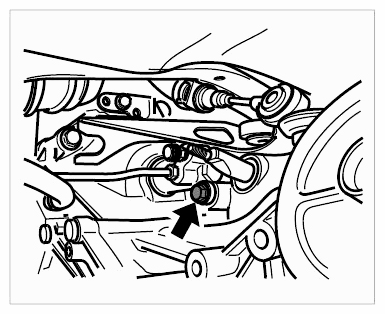

Fig 3: Locating Clutch Slave Cylinder Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off electric connector for reversing light switch.

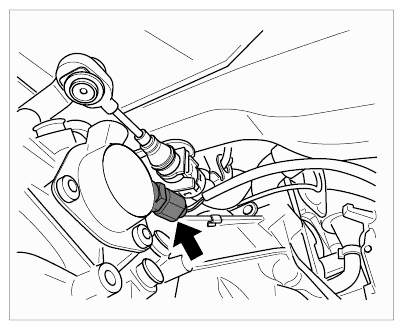

Fig 4: Locating Reversing Light Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove mount for exhaust system from transmission.

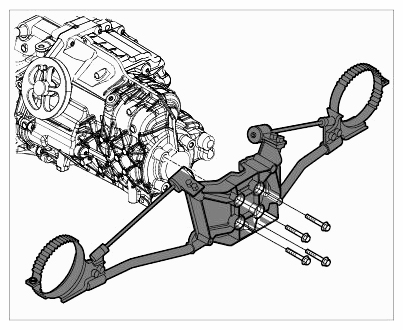

Fig 5: Identifying Exhaust System Mounting Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
