Mounting Transmission

Information

Before installing the transmission, clean splines of transmission input shaft and grease lightly, e.g. with Olista Longtime 3 EP.

→ Observe guidelines for assembly and disassembly

1. Mount the transmission.

   Screw in and tighten screw -4-  first, then -3, 5, 6-  and finally -1, 2-  .

   → Tightening torque: 85 Nm (63 ftlb.)

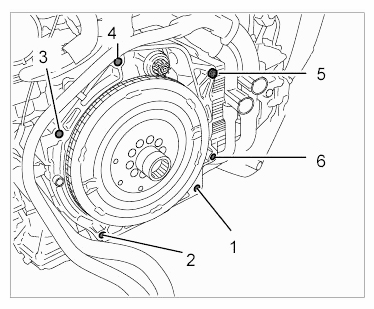

   Fig 1: Identifying Porsche Doppelkupplung Screws Loosening/Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Remove restraining strap.
2. Fit exhaust system suspension on the transmission.

   Fit exhaust system suspension and screw in and tighten M8 screws.

   → Tightening torque: 23 Nm (17 ftlb.)

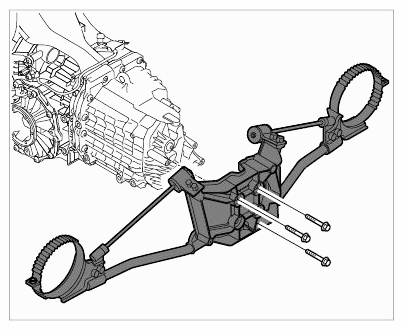

   Fig 2: Fitting Exhaust System Suspension

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install clutch slave cylinder.
   1. 3.1. Guide the clutch slave cylinder into the opening on the transmission and screw in M8 screw.

      → Tightening torque: 23 Nm (17 ftlb.)

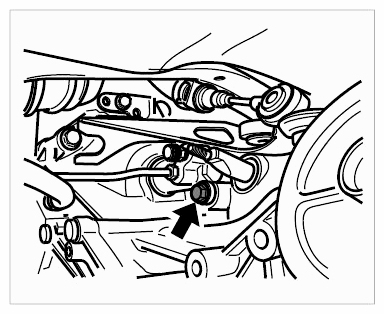

      Fig 3: Locating Clutch Slave Cylinder Screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      Before installing the clutch slave cylinder, grease the push rod with Kluberalfa in the area of the release-lever ball socket. Part No. 000.043.304.02 (50g tube).

   2. 3.2. Fit external shift mechanism and screw on M8 nut.

      → Tightening torque: 23 Nm (17 ftlb.)

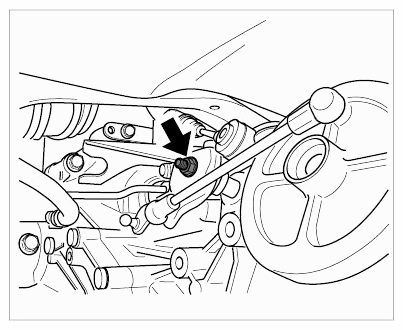

      Fig 4: Locating External Shift Mechanism Fastening Nut

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Connect cable plug for reversing light switch.

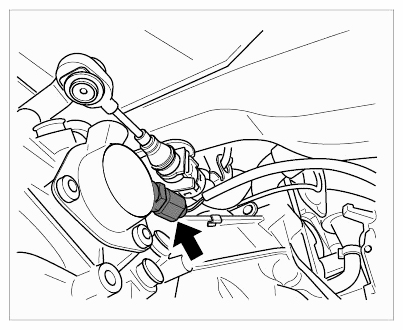

   Fig 5: Locating Reversing Light Switch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
