Assembly Work

WARNING: This page is about a different variant/trim than selected.

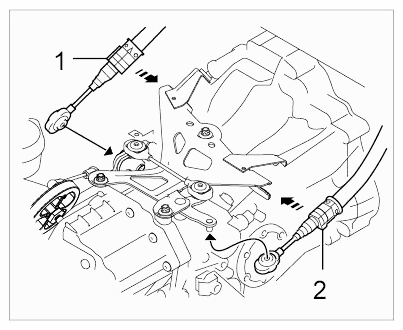

Engage shift cable (with grey sealing cap) -1- and selector cable (with blue sealing cap) -2- in the support and press on the ball pin.

Fig 1: Engaging Shift And Selector Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

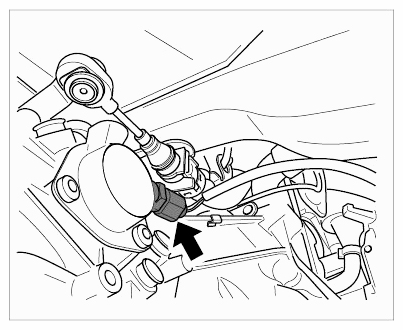

Push on electric connector for reverse gear switch.

Fig 2: Locating Reversing-Light Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

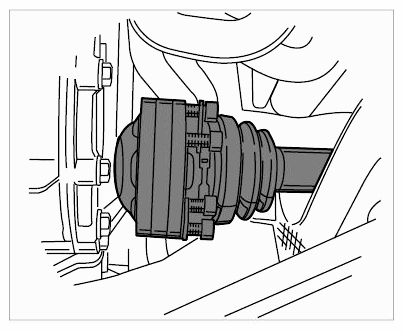

Fit drive shafts on the transmission side. For this purpose, tighten six hexagon socket screws between the drive shaft and the transmission flange, respectively. Counter at the brake disc or activate the parking brake to avoid simultaneous turning.

Fig 3: Identifying Drive Shaft

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Drive shafts	Fastening screws between drive shaft and transmission flange	Tightening torque	60 ftlb.

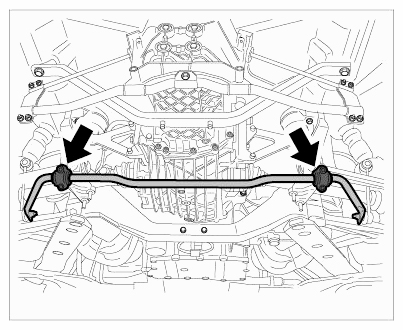

Screw in fastening screws between anti-roll bar and rear axle carrier side member.

Fig 4: Locating Anti-Roll Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Anti-roll bar	Fastening screws between anti-roll bar and rear axle carrier side member	Tightening torque	17 ftlb.
