Preliminary Work
WARNING: This page is about a different variant/trim than selected.
WARNING:
Vehicle raised incorrectly
- Danger of fatal injury and material damage should the vehicle fall down
→ Jack the vehicle at the prescribed jacking points.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.
- Jack and raise the vehicle at the prescribed jacking points.
→ WM 4X00IN LIFTING THE VEHICLE (ALL MODELS)
Information
- When raising the vehicle, take care to maintain access to the screws for the diagonal struts in the vicinity of the rear jacking points.
- Remove wheels.
- Remove rear silencer.
→ REMOVAL
- Remove support plate.
- Remove restraining cables on cross member.
Unscrew nuts for restraining cables and remove restraining cables from the cross member.

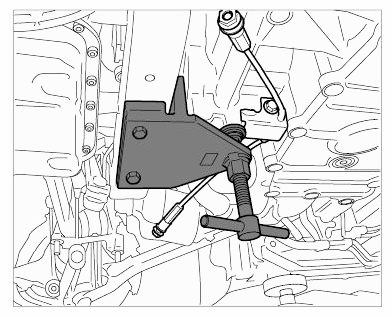

- Support the engine.
Retaining device 9624/3 must be screwed to cross member. Then turn spindle upwards and support engine.
