Installing Transmission: Notes
WARNING: This page is about a different variant/trim than selected.
Information
Before installing the transmission, clean splines of transmission input shaft and grease lightly, e.g. with Olista Longtime 3 EP.

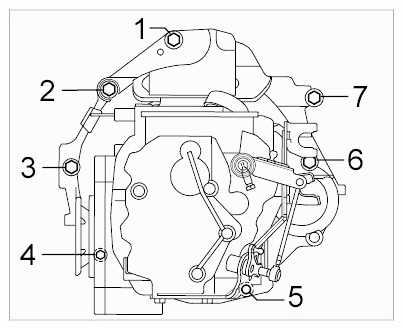

- Move in transmission and screw in fastening screws -1 to 7-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Location Description Type Basic value Tolerance 1 Tolerance 2 Transmission/engine connection Hexagon-head bolt no. 1 in illustration, M12 x 70 Tightening torque 85 Nm (63 ftlb.) Transmission/engine connection Hexagon-head bolt no. 2 in illustration, M12 x 100; with washer Tightening torque 85 Nm (63 ftlb.) Transmission-engine connection Hexagon bolt No. 3 M12 x 90 in illustration Tightening torque 85 Nm (63 ftlb.) Transmission-engine connection Internal serration screw No. 4 M10 x 35 in illustration Tightening torque 45 Nm (33 ftlb.) Transmission-engine connection Nut No. 5 M10 in illustration Tightening torque 45 Nm (33 ftlb) Transmission/engine connection Hexagon-head bolt no. 6 in illustration, M12 x 90 Tightening torque 85 Nm (63 ftlb.) Transmission-engine connection Hexagon bolt No. 7 M12 x 90 in illustration Tightening torque 85 Nm (63 ftlb.) Information
Before installing the clutch slave cylinder, grease the push rod with Kluberalfa in the area of the release-lever ball socket. Part No. 000.043.304.02 (50g tube).
- Insert clutch slave cylinder in transmission opening and screw in fastening screw. → INSTALLING
Location Description Type Basic value Tolerance 1 Tolerance 2 Clutch slave cylinder Fastening screw between transmission housing and clutch slave cylinder Tightening torque 23 Nm (17 ftlb.) - Fit left and right transmission supports with hydraulic mount.

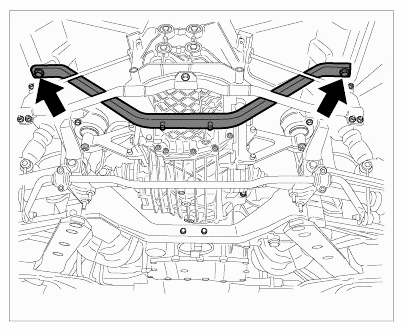

Location Description Type Basic value Tolerance 1 Tolerance 2 Transmission support Fastening screws between transmission support and transmission Tightening torque 65 Nm (43 ftlb.) Hydraulic mount Fastening screws between hydraulic mount and body Tightening torque 33 Nm (24 ftlb.) - Install cross member.
Location Description Type Basic value Tolerance 1 Tolerance 2 Cross member Fastening screws between cross member and body Tightening torque 65 Nm (48 ftlb.) - Remove transmission jack.
