Securing Shift And Selector Cables Inside The Vehicle

Information

During installation of the shift and selector cables, the transmission must be engaged in neutral.

1. Locking bridge 9619/1  must be fitted on the gearshift bracket.

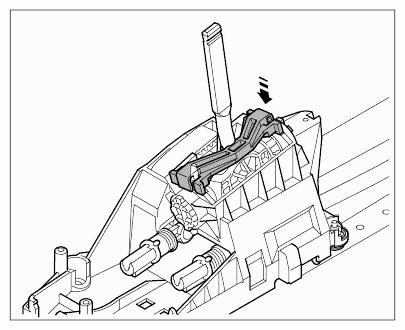

   Fig 1: Fitting Locking Bridge

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove transport and assembly sleeves from the adjustment pins.
3. Clip in supports on the gearshift bracket. The support with the blue hinged tube must be fitted on the left and the support with the black hinged tube must be fitted on the right.
   Fig 2: Installing Gearshift Bracket Supports

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Insert adjustment pin without tension into the preselector and shift connections and press down firmly.

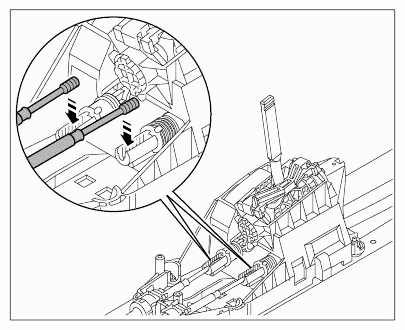

   Fig 3: Engaging Shift Cables

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Close bayonet locks at the preselector and shift connections.

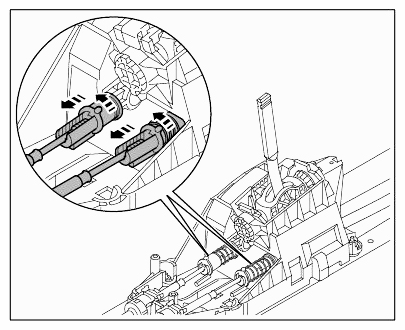

   Fig 4: Closing Bayonet Locks

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
