Securing Shift And Selector Cables At Transmission

WARNING: This page is about a different variant/trim than selected.
  1. Engage shift -1-  (grey end piece) and selector cable -2-  (blue end piece) into support bracket for transmission and press end pieces onto ball heads.

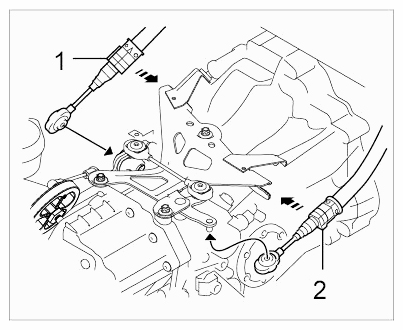

    Fig 1: Engaging Shift And Selector Cables
    G09586565Courtesy of PORSCHE CARS NORTH AMERICA, INC.
