Installing Gearshift Bracket

WARNING: This page is about a different variant/trim than selected.

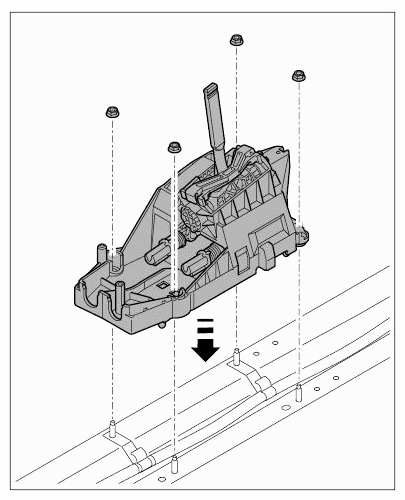

Fit gearshift bracket and screw in nuts.

Fig 1: Installing Gearshift Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Gearshift bracket		Tightening torque	10 Nm (7.5 ftlb.)

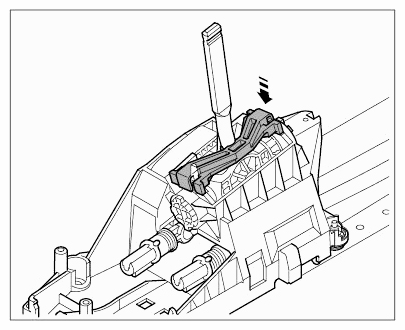

Locking bridge 9619/1 must be fitted on the gearshift bracket.

Fig 2: Fitting Locking Bridge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

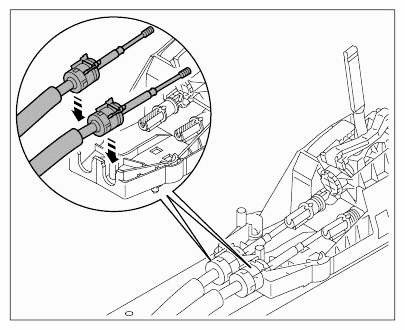

Clip in supports on the gearshift bracket. The support with the blue hinged tube must be fitted on the left and the support with the black hinged tube must be fitted on the right.

Fig 3: Installing Gearshift Bracket Supports
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before starting to install the gearshift bracket, ensure that the transmission is in neutral.

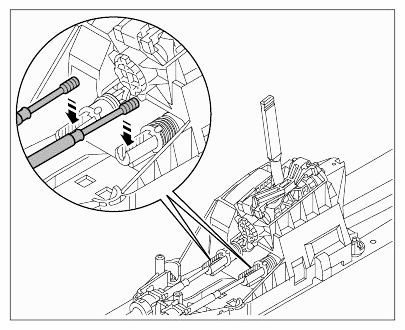

Engage adjustment pin on pre-selector and shift connections.

Fig 4: Engaging Shift Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

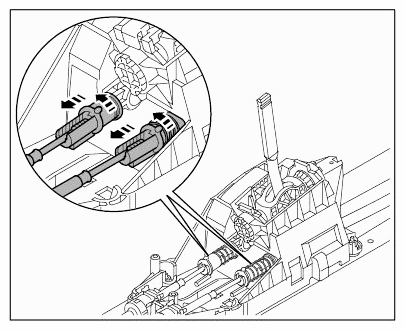

Close bayonet locks on the pre-selector and shift connections.

Fig 5: Closing Bayonet Locks
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

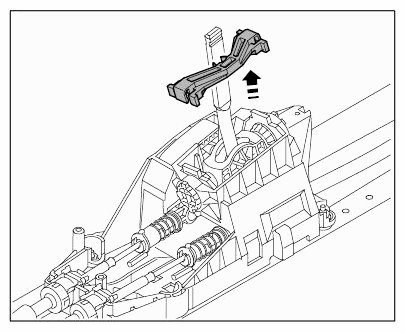

Remove locking bridge.

Fig 6: Removing Locking Bridge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
