Removing Shift-Lever Knob

WARNING: This page is about a different variant/trim than selected.
  1. Unclip retaining frame for the leather sleeve in an upward direction using an assembly wedge.

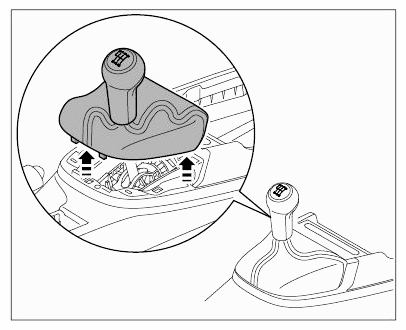

    Fig 1: Removing Leather Sleeve
    G09586528Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn leather sleeve clockwise by 90° as far as it will go.
    Fig 2: Turning Leather Sleeve Clockwise
    G09586529Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull shift-lever knob up and off the shift lever.

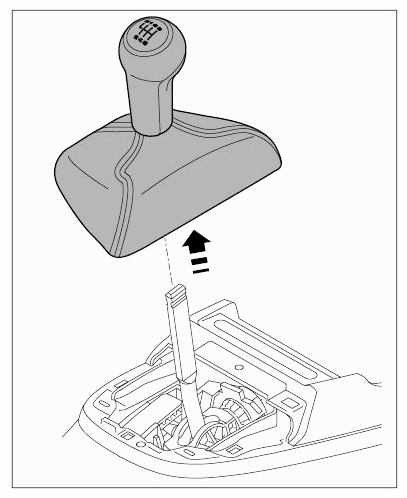

    Fig 3: Pulling Off Shift-Lever Knob
    G09586530Courtesy of PORSCHE CARS NORTH AMERICA, INC.
