Removing Seal For Convertible-Top Compartment Lid

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

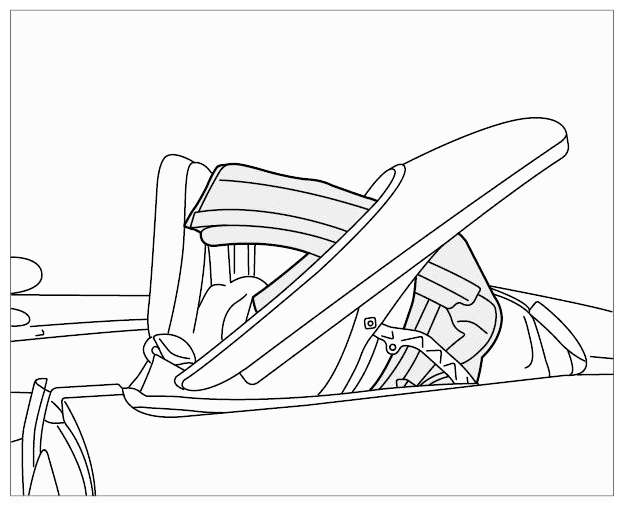

Move convertible top to position shown in the illustration.

Fig 1: Identifying Convertible Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

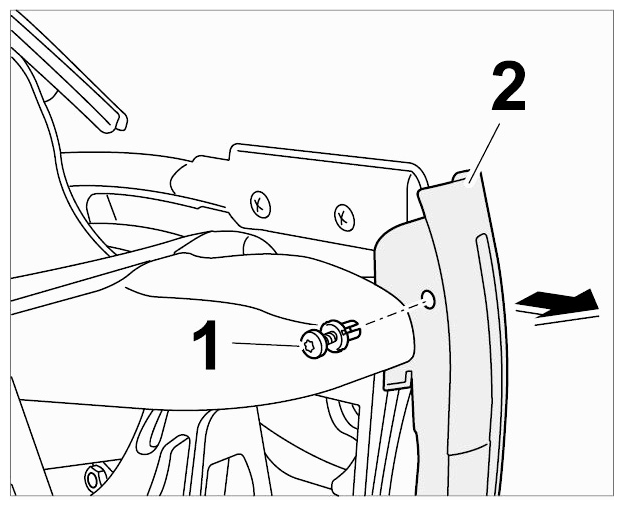

Unscrew fixing clip -1- and slightly pull out rubber seal for door -2- .

Fig 2: Loosening Door Rubber Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

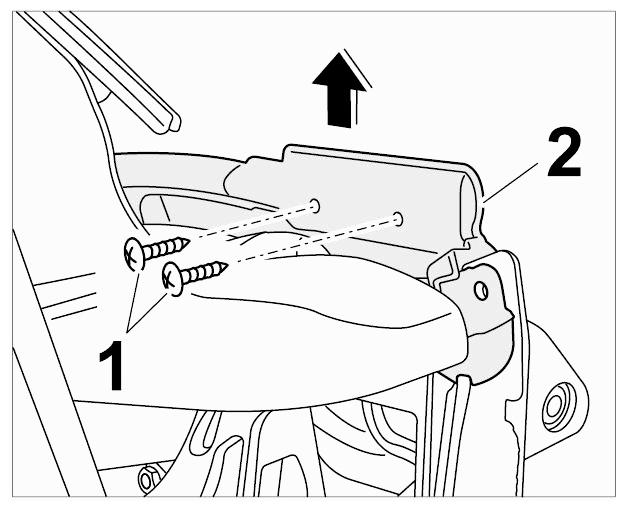

Unscrew fastening screws -1- in area of B-pillar on right and left and gently lift seal for convertible top compartment lid -2- .

Fig 3: Loosening Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

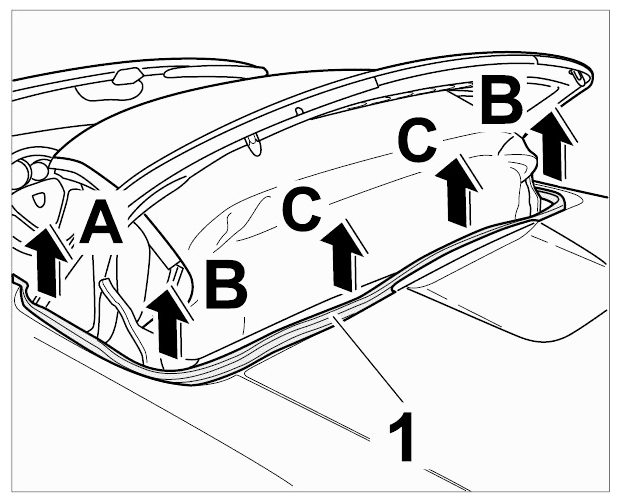

Remove seal for convertible top compartment lid from the flanges -1- at the side panels -Arrow A- , at the corner pieces -Arrow B- and with the engine compartment bulkhead -Arrow C- .

Fig 4: Removing Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
