Removing Switch For Roof

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

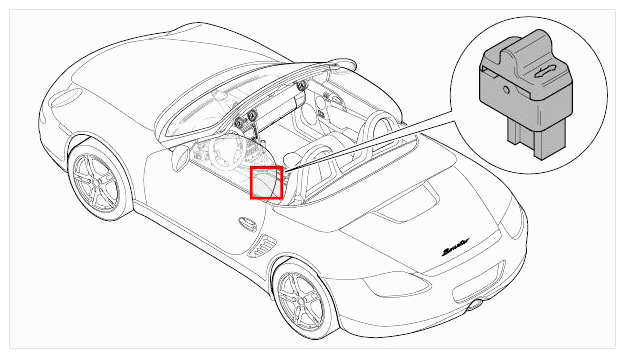

Fig 1: Removing/Installing Switch For Roof
G09590462Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Turn over Centre console.
  2. Release connector -1-  and remove it -arrow a-  .
  3. Press locking lugs on switch for roof outwards -2- (-arrows b-)  and push switch for roof up and out of the Centre console.

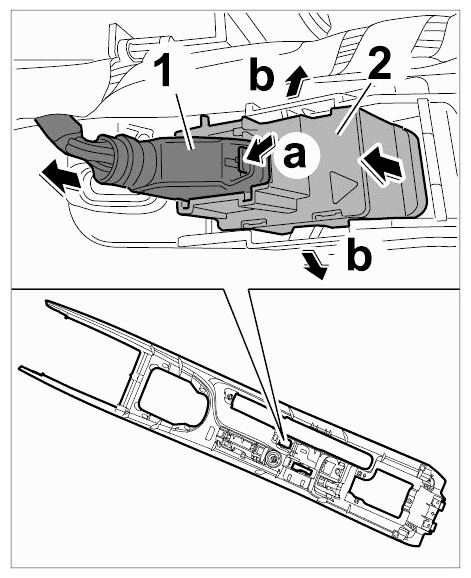

    Fig 2: Removing Switch For Roof
    G09590463Courtesy of PORSCHE CARS NORTH AMERICA, INC.
