Installing Switch For Roof

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

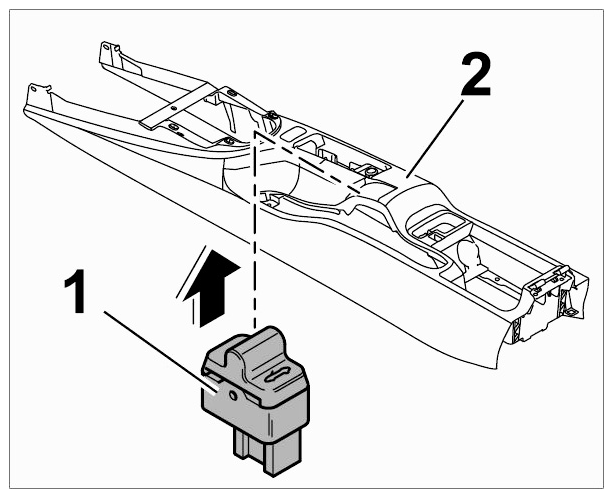

Insert switch for roof -1- into the Centre console from above -2- until the locking lugs are felt to engage.

Fig 1: Installing Switch For Roof
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn over Centre console.

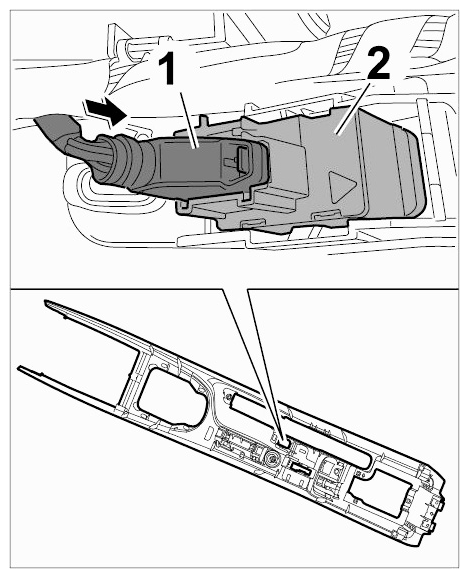

Push connector -1- onto switch for roof -2- until it is felt to engage.

Fig 2: Pushing Roof Switch Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
