Preliminary Work

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Information

Two persons are needed to disengage and engage the convertible top mechanism!

→ Move Convertible Top To Service Position

Partly remove hood covering.

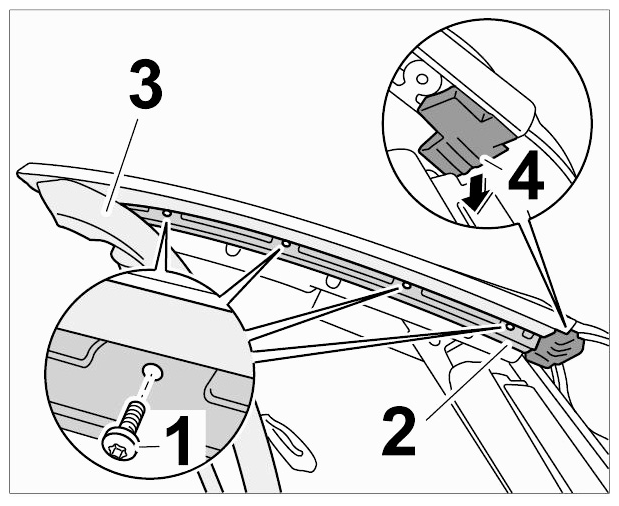

Unscrew fastening screws -1- and remove cover strip -2- from roof frame -3- .

Fig 1: Identifying Cover Strip And Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

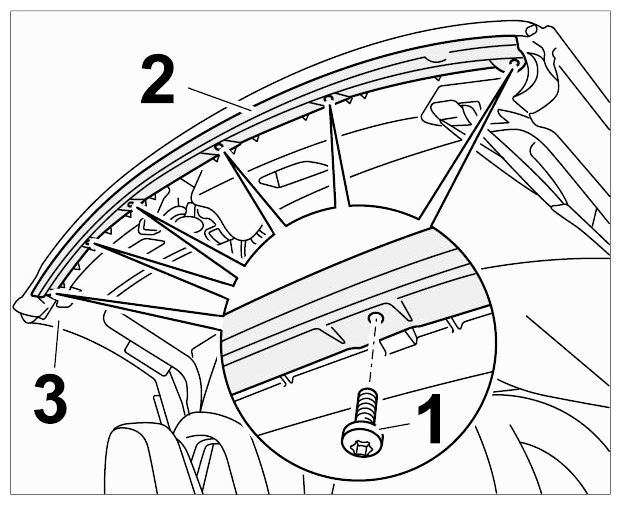

Pull the lower seal -1- at the sides out of the profile of the retaining strip -2- .
Unscrew fastening screws -3- at the front of the roof frame.

Fig 2: Pulling Lower Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

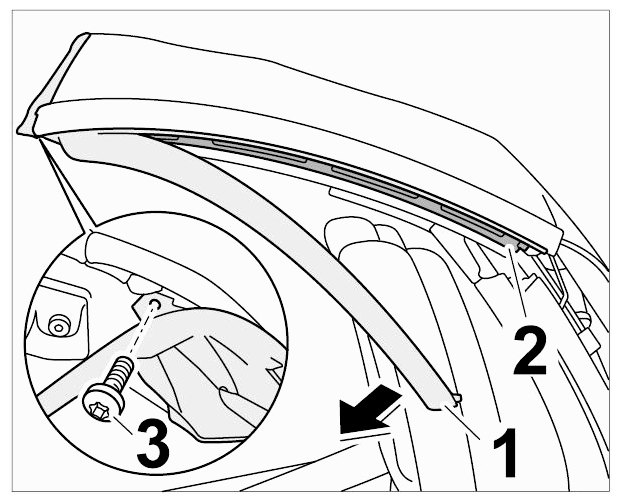

Remove fastening screws -1- from the retaining strip -2- . Pull off seal for hood tip -3- .
Remove additional seal -4- .

Fig 3: Removing Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

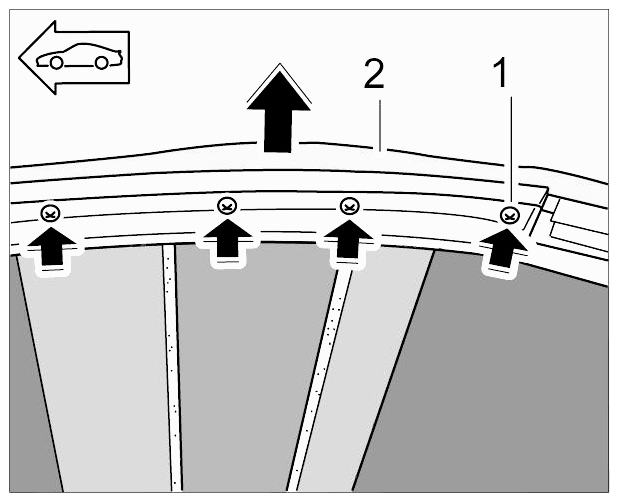

Unscrew fastening screws -1- on the roof frame and slightly raise the shaped sheetmetal part together with the hood covering -2- .

Fig 4: Detaching Shaped Sheetmetal Part With Hood Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

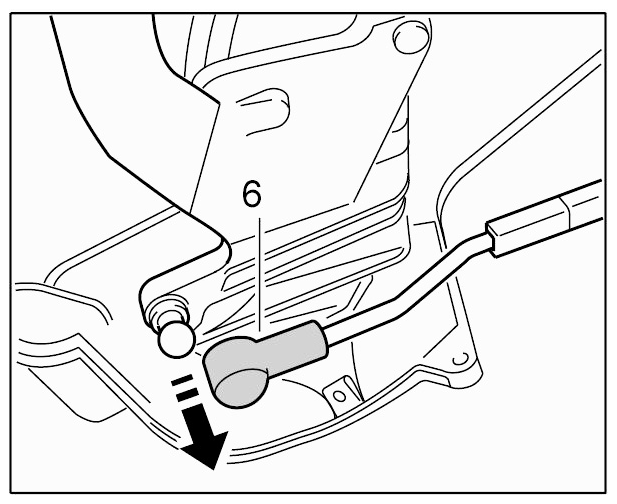

Press the ball socket of the push rod -6- off the ball joint of the main folding top bow.

Fig 5: Pressing Out Push Rod
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully remove hood by hand to the rear.

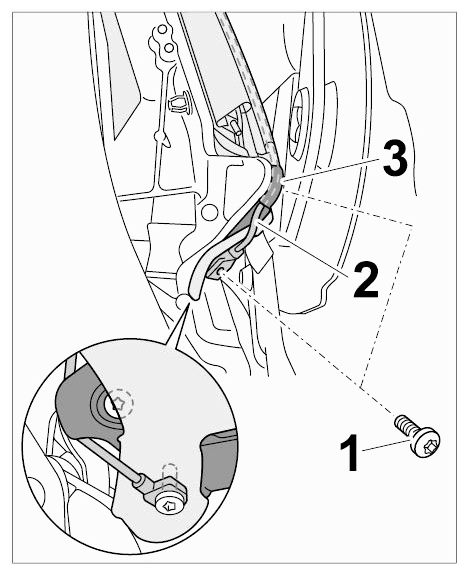

Unscrew fastening screws at the sides -1- using assembly tool with T25 insert 9744 to remove them from the tension rope -2- and unscrew clamping rail -3- .

Fig 6: Identifying Tension Rope On Hood Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
