Removing Tension Rope

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully press the tension rope -1-  in the middle of the hood covering -2-  out of the profile -3-  using a screwdriver -arrow A-  and pull it out fully with your hand.
  2. Pull the tension rope -1-  towards the spring side and out of the hood covering -2- (-arrow B-).

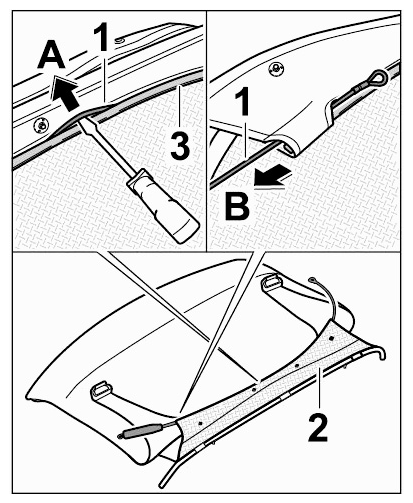

    3. Fig 1: Removing Tension Rope
    G09590436Courtesy of PORSCHE CARS NORTH AMERICA, INC.
