Installing Main Folding Top Bow

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press Teflon sleeves -1-  at both sides into the bores on the main folding top bow -2-  .
  2. Position main folding top bow on convertible top support -3-  and join with the pin -4-  (8 x 70 mm) -arrow-  .
  3. Press retaining clip -5-  into the pin.

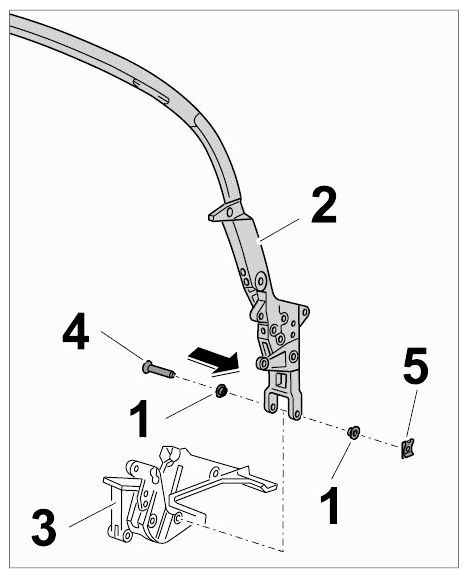

    4. Fig 1: Installing Main Folding Top Bow
    G09590403Courtesy of PORSCHE CARS NORTH AMERICA, INC.
