Removing Shaped Sheetmetal Part With Hood Covering

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

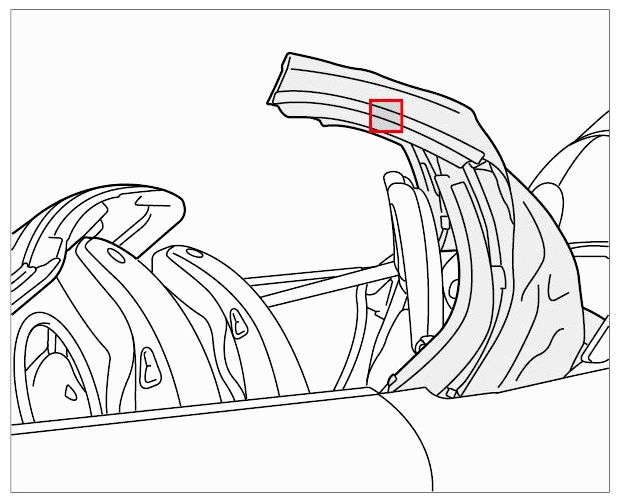

Fig 1: Identifying Removal Position Of Hood Covering
G09590337Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  from roof frame, and gently lift shaped metal part together with hood covering -2-  .

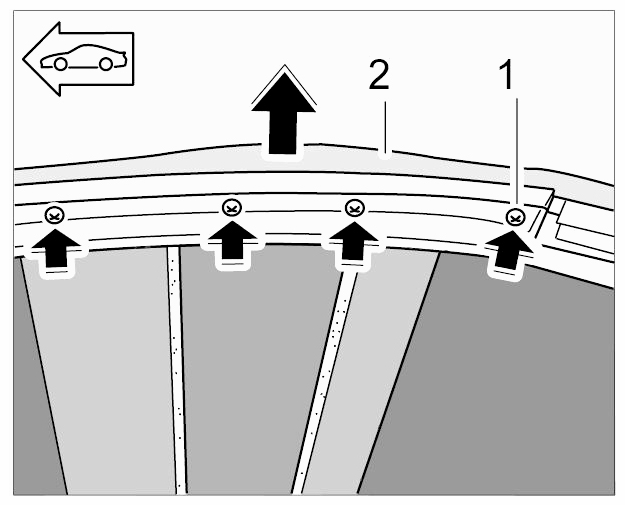

    Fig 2: Loosening Shaped Sheetmetal Part With Hood Covering
    G09590338Courtesy of PORSCHE CARS NORTH AMERICA, INC.
