Detaching Folding Mechanism

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

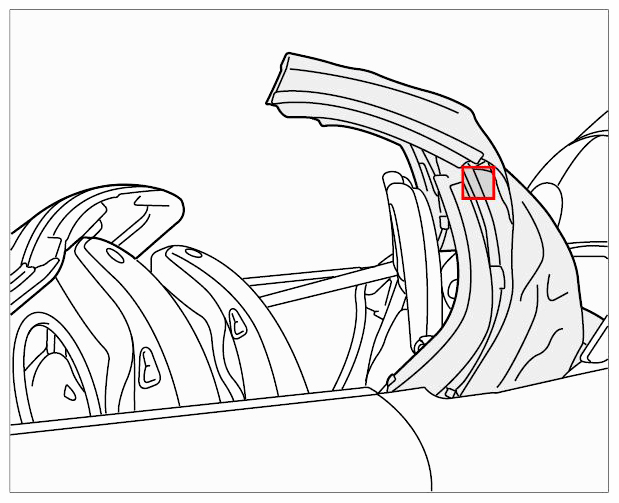

Fig 1: Identifying Removal Position Of Hood Covering

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not pull out the fold placer.

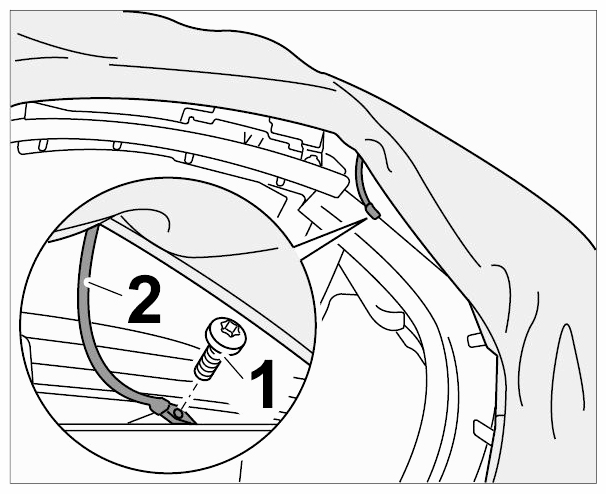

Unscrew fastening screws -1- on the folding mechanism -2- at the left and right.

Fig 2: Identifying Folding Mechanism Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
