Installing Cover Strip

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

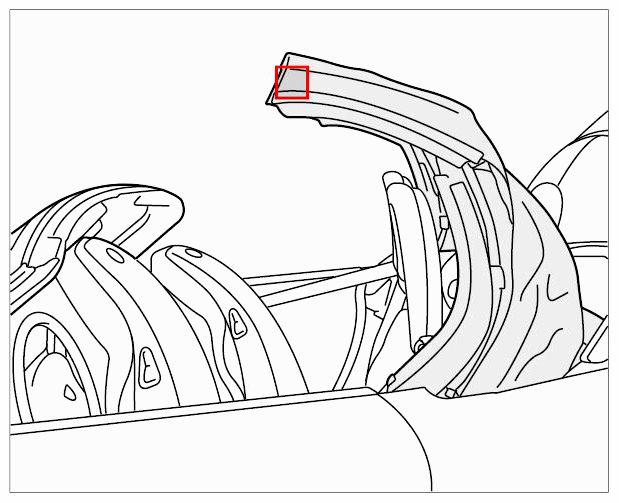

Fig 1: Identifying Installation Position For Cover Strip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Seal for convertible-top tip must not be trapped. There must be no gap between seal and covering, and the seal with the covering must run evenly. If necessary, pull the seal up and out and tap it in again.

Position cover strip -2- on roof frame -3- and screw down with the fastening screws -1- . Tightening torque → Tightening torque: 3.5 Nm (2.5 ftlb.)

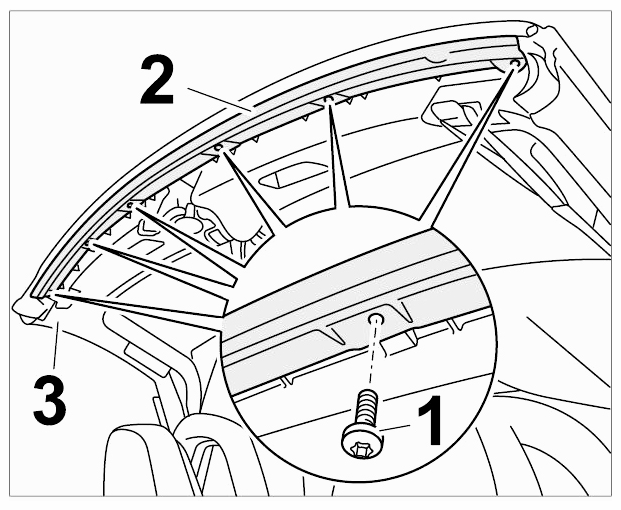

Fig 2: Identifying Cover Strip Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
